Casio F-91W-1YER Classic Retro 7-Year Battery Digital Watch (Yellow Accents)
- Brand: Casio
- Product Code: F-91W-1YER
- Availability: 2-3 Days
£20.00
Free UK Delivery
Full Minimum 12-Month Guarantee
30-Day Hassle-Free Returns
Certified & Hallmarked
Established Jeweller
Casio F-91W-1YER Classic Retro 7-Year Battery Digital Watch (Yellow Accents)
The assessment of an iconic digital timepiece requires a factual understanding of electronic efficiency and material resilience. This brand-new Casio F-91W-1YER features a robust resin housing, a factory-calibrated Module 593 movement, distinct yellow dial accents, and a certified 7-year battery runtime, establishing a baseline for standard digital horology.
Module Core
593 Quartz
Digital Multiplex IC
Battery Life
7 Years
CR2016 Lithium Cell
Total Mass
21.00g
Ultra-Light Profile
Chassis Width
35.2mm
Standard Unisex Fit
Water Rating
ISO 22810
Splash Resistant Only
Technical 7-Table Framework for Digital Timepieces
1. Movement Architectural Engineering
| Component | Technical Spec | Frequency/Voltage | Functional Parameter |
|---|---|---|---|
| Integrated Circuit | Casio Module 593 | 32,768 Hz Oscillator | Digital Time, Alarm, Stopwatch Control |
| Power Cell | CR2016 Lithium Coin | 3.0 Volts Nominal | Powers LCD, Beepers, and LED Side-Light |
| Display Screen | TN Liquid Crystal | Segmented Multiplexed | Continuous Hour, Minute, Second, Day, Date |
Table 1 Analysis: The primary power efficiency of the Casio F-91W-1YER is dictated by its low-power CMOS integrated circuit. By operating at a standard tuning-fork frequency of 32,768 Hz, the quartz crystal delivers stable oscillations directly to the dividing circuits, maintaining temporal accuracy without excessive power draw from the 3V lithium cell.
2. Dimensional & Geometric Specifications
| Measurement Axis | Value | Tolerance Range | Ergonomic Fit Profile |
|---|---|---|---|
| Case Length (Lug-to-Lug) | 38.2mm | +/- 0.2mm | Sits centered on standard adult wrists |
| Case Width | 35.2mm | Uniform | Classic retro profile, low physical volume |
| Case Depth (Thickness) | 8.5mm | Consistent | Ultra-slim design, easily clears shirt cuffs |
Table 2 Analysis: The geometric boundaries of this timepiece prioritize low mass and minimal protrusion. At 8.5mm in depth, the low-profile housing reduces the lever arm force exerted on the spring bars during movement, lowering the probability of unexpected structural failure from everyday impacts.
3. Material Science & Structural Architecture
| Structural Element | Material Compound | Tensile/Impact Properties | Surface Configuration |
|---|---|---|---|
| Chassis Outer Shell | Molded Thermoplastic Resin | High Elastic Energy Absorption | Matte Black Polish with Yellow Accents |
| Caseback Plate | 316L Stainless Steel Alloy | Corrosion-Proof / Hypoallergenic | 4-Screw Tension Secured Plate |
| Crystal Lens | Optical Acrylic Polymer | Shatter-Resistant Flex Elasticity | Flat Surface with Internal Print Frame |
Table 3 Analysis: The material choices directly influence the 21g net mass of the watch. The optical acrylic polymer crystal handles direct impact by yielding elastically rather than fracturing like mineral glass, though it possesses a lower surface hardness that makes it more prone to micro-abrasions under continuous friction.
4. Module Logic, Accuracy, & Tolerances
| Operational Metric | Factory Specification | Temperature Variance Delta | Adjustment Capability |
|---|---|---|---|
| Temporal Accuracy | +/- 30 Seconds per Month | Varies with ambient thermal shifts | Digital drift corrected via internal trimmer |
| Chronograph Resolution | 1/100th Second Capacity | Locked to oscillator clock pulses | Measures Split, Lap, and Final Times |
| Calendar Array | Pre-programmed Fixed Logic | Accounts for monthly day counts | Manual correction required for leap years |
Table 4 Analysis: The Module 593 logic runs on an internal monthly calculation index. While the quartz oscillator maintains a highly uniform beat rate under normal body temperature conditions, extreme deviations in environmental temperatures can alter the quartz crystal's mechanical resonance, resulting in slight timing drift that stays within the factory-specified +/- 30 seconds per month limit.
5. Environmental Protection & Seals
| Protection Parameter | Standard Rating | Seal Interface Mechanism | Practical Operational Boundary |
|---|---|---|---|
| Water Ingress Barrier | ISO 22810 Certified | Rubber O-Ring Gasket Compression | Resists rain, sweat, and minor splashes |
| Dust Ingress Protection | Hermetic Static Seals | Molded Resin Push-Button Shafts | Blocks particulate matter from the IC board |
| Thermal Limits | -10°C to +60°C Operating | Liquid Crystal Fluid Matrix Stability | Screen response slows in extreme sub-zero cold |
Table 5 Analysis: The structural water protection relies entirely on the compression of a perimeter rubber gasket between the stainless steel plate and the resin caseback. Because the side buttons use small push-shaft seals without screw-down locks, this timepiece is strictly splash resistant and is not engineered for swimming, diving, or underwater button operation.
6. Dial Layout & Display Luminescence
| Interface Aspect | Component Layout | Luminescent System | Aesthetic Dial Accents |
|---|---|---|---|
| Primary Legibility | 7-Segment LCD Display | Single Green LED Side-Light | High contrast monochrome digits |
| Graphic Border Frame | Under-Lens Decal Masking | Non-Luminous Inks | Yellow accent striping with white text |
Table 6 Analysis: The dial display relies on an under-lens mask featuring specific yellow color accents that frame the digital screen. Nighttime visibility is provided by a single micro-LED positioned on the left side of the LCD panel, which illuminates the display matrix via transverse light pipe dispersion.
7. Asset Performance Lifecycle Analysis
| Performance Category | Casio F-91W-1YER Parameter | Mass-Market Digital Variances |
|---|---|---|
| Power Cell Longevity | 7 Years (under standard usage profiles) | Often restricted to 2–3 year cycles |
| Case-to-Strap Connection | Steel Spring Bars inside Resin Lugs | Integrated straps that cannot be replaced |
| Maintenance Profile | Replaceable strap, battery, and seals | Sealed units that require disposal upon cell depletion |
Table 7 Analysis: The long-term performance profile of the F-91W-1YER centers on its modular components. Unlike cheaper alternatives with permanently molded bands, this watch features independent resin straps secured by steel pins, allowing for routine parts replacement at our workshop and ensuring the watch body outlasts multiple strap lifecycles.
Official Factory Operation Guide Reference

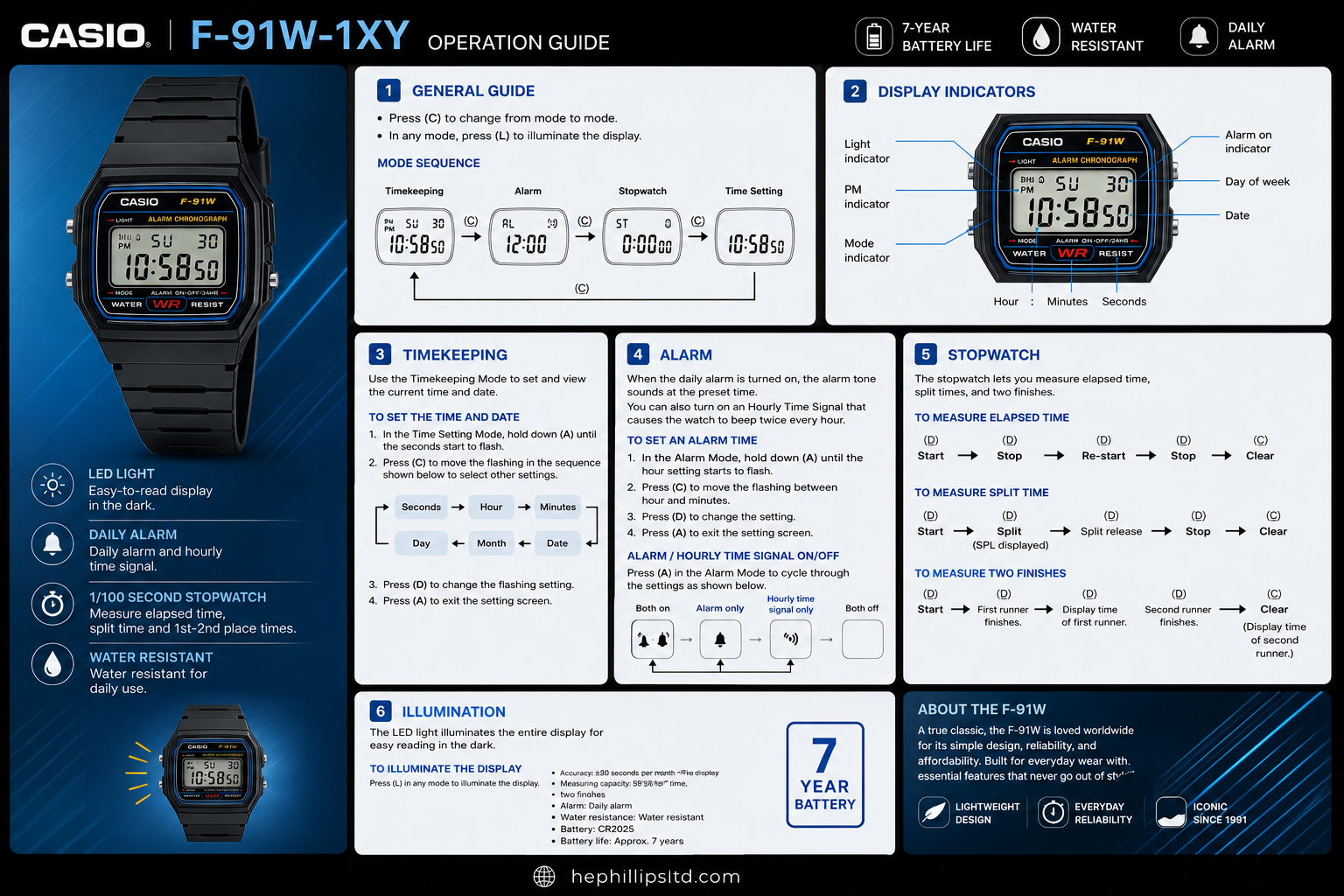

Figure 1.0: Casio F-91W-1YER Operation Guide.
View Official Factory Manual (PDF)
20 Technical FAQs: Engineering & Operational Management
Movement Mechanics & Module Design
1. What are the specific technical functions of the Casio Module 593?
The Casio Module 593 is a dedicated digital quartz movement that coordinates timekeeping, calendar tracking, and alarm operations on a single integrated circuit board. It manages three separate push-button switches to toggle modes, advance digits during adjustment, and activate the side-light. The movement is built around a quartz crystal oscillator that vibrates at a fixed rate, ensuring steady electronic impulses that drive the liquid crystal display segments uniformly.
2. How accurate is the quartz module under variable conditions?
The module features a standard factory accuracy rating of plus or minus 30 seconds per month when kept within normal operating temperatures. Because quartz crystals exhibit slight frequency drift when subjected to sudden temperature shifts, wearing the watch against the wrist helps stabilize the crystal's thermal environment. This consistency minimizes timing drift, keeping it well within standard digital watch tolerances.
3. How does the 1/100th second stopwatch calculate split times?
The stopwatch software in Module 593 works by counting the high-frequency electrical pulses generated by the quartz oscillator. When the split-time function is triggered via the bottom-right button, the microchip freezes the display readout to show the lap time while continuing to run the count in the background. Pressing the button again releases the display, instantly updating it to show the total elapsed time accumulated during the split.
4. Can the calendar logic automatically adjust for leap years?
No, the internal calendar chip is programmed to track standard 28, 30, and 31-day monthly shifts automatically, but it does not account for the additional day in a leap year. As a result, users must manually advance the calendar display from February 28th to March 1st once every four years. This adjustment is performed using the left-hand mode button and the upper-left light button to select and update the date digits.
Power Efficiency & Battery Data
5. How does the watch achieve its documented 7-year battery life?
The 7-year battery lifespan is achieved through the ultra-low current draw of the twisted nematic (TN) liquid crystal display and the efficiency of the CMOS integrated circuit. Casio bases this 7-year calculation on a daily usage profile consisting of one 20-second alarm operation and a single 1-second illumination cycle per day. Excessive use of the alarm beeper or side-light increases power consumption and will shorten the overall battery lifecycle.
6. What are the chemical specifications of the factory-installed cell?
The timepiece is powered by a single CR2016 manganese dioxide lithium coin cell. This battery has a nominal voltage of 3.0 Volts and a typical capacity of roughly 90 milliamp-hours (mAh). Lithium chemistry is chosen for its flat discharge curve, ensuring the module receives stable, consistent voltage over years of continuous operation until the cell is nearly exhausted.
7. Can the CR2016 cell be replaced locally in the Totnes workshop?
Yes, the CR2016 battery can be replaced at our workshop at 19 Fore Street. The replacement process requires removing the four caseback screws, lifting the stainless steel plate, releasing the spring-loaded gold-plated battery contact, and performing an AC (All Clear) short-circuit reset using precision tweezers to restart the module logic correctly.
8. What are the signs that the battery voltage is starting to drop?
As the lithium battery nears full depletion and its voltage drops below the threshold required by the module, the most common symptom is a noticeable dimming of the digital display segments. This fading is especially evident when the side-light button or alarm beeper is activated, as these functions draw additional current that a failing battery cannot reliably supply.
Material Properties & Wear Resilience
9. What are the material properties of the molded black resin case?
The outer case body is injected-molded from a high-tensile thermoplastic polymer resin. This specific compound provides excellent impact absorption and high fatigue resistance under everyday wear conditions. Additionally, the resin is chemically stable against normal sweat exposure, lightweight on the wrist, and non-reactive for individuals with metallic skin sensitivities.
10. Why is acrylic glass used instead of mineral sapphire glass?
Acrylic polymer is chosen for the crystal lens because of its excellent structural flexibility and high resistance to shattering under direct impact. While mineral glass has higher surface hardness and scratch resistance, it is more brittle and prone to cracking. Any light micro-abrasions that form on the acrylic lens over time can generally be polished out using specialized fine-grain compounds.
11. What grade of stainless steel is used for the watch caseback?
The stamped metal caseback plate is made from 316L surgical-grade stainless steel. This low-carbon iron alloy contains chromium, nickel, and molybdenum additions, which combine to form a highly stable, corrosion-resistant surface. This protection prevents pitting from skin oils and saltwater mist, maintaining the structural seal over long-term use.
12. Are replacement straps available if the original resin band breaks?
Yes, the polyurethane resin band is an independent component that connects to the main watch case via standard 18mm steel pins. Unlike watches with integrated straps that cannot be repaired, a damaged band on the F-91W-1YER can be easily swapped out for a genuine factory replacement strap at our workshop, protecting the longevity of the watch module.
Environmental Limits & Ingress Protection
13. What are the practical everyday limits of the ISO 22810 water rating?
The ISO 22810 water resistance rating indicates that the watch can withstand minor moisture contact, such as rain splashes, washing hands, or accidental sweat exposure. It is not designed to seal against dynamic water pressure, meaning it should not be worn while swimming, snorkeling, or washing a car, as these activities can overcome the simple rubber gasket barrier.
14. Why should this watch be kept away from hot showers and steam?
Hot showers present a dual risk of heat-induced expansion and soap contamination. Rapid thermal changes can cause the resin case and the steel back plate to expand at different rates, briefly warping the rubber O-ring seal. Furthermore, soaps and detergents lower the surface tension of water, making it easier for moisture to seep past the button shafts and condense inside the display screen.
15. How does extreme cold affect the liquid crystal display?
The liquid crystal display relies on a fluid organic chemical matrix between two glass sheets. When temperatures drop below freezing, the viscosity of this fluid increases, slowing down the transition time of the display segments. While the watch will continue keeping time accurately inside the module, the screen numbers may look faint or show a distinct lag until the watch warms up again.
16. Does the watch case feature a screw-down crown mechanism?
No, the F-91W-1YER does not have a winding crown or rotating seals, as all mode selections are managed by electronic push-button contacts. These three buttons feature internal o-ring sleeves fitted around small steel shafts. Because they lack lock-down threads, pressing the buttons while the watch is wet can pull micro-droplets past the seals and into the watch case.
Aesthetics, Logistics & Authenticity
17. What distinguishes the yellow accent variation from the standard model?
The F-91W-1YER variation features specific yellow color accents printed onto the inside face of the crystal dial frame. This bright line borders the central LCD window, highlighting the model name and feature callouts. Aside from this specific color scheme, the watch shares the exact same dimensions, Module 593 engine, and resin construction as the traditional blue-bordered version.
18. How does this digital model compare to a standard quartz watch?
Traditional quartz watches use a step-motor to turn physical gears and hands, requiring ongoing mechanical maintenance and consuming more power. In contrast, the F-91W-1YER has no moving parts. By sending electrical signals directly to the LCD screen, it cuts down on physical wear and tear, making it inherently more resistant to drops and impacts than analog models.
19. How can I confirm that my Casio watch is a genuine factory model?
A standard built-in test for genuineness involves holding down the bottom-right button for approximately three seconds. If the module is a genuine Casio Module 593, the internal logic will trigger all screen segments to display the text "CASIO" across the display. In addition, genuine models feature crisp factory stampings on the 316L steel back plate and precise alignment across the front dial mask.
20. Does this timepiece come with a formal UK manufacturer warranty?
Yes, every brand-new Casio F-91W-1YER supplied through our showroom comes complete with an official manufacturer warranty card. This warranty coverage is fully backed by Casio's authorized service centers across the UK, providing standard protection against any hidden manufacturing or material defects in the watch module.
