Casio Vintage LA670WEGA-1EF Mini Gold Digital Watch with Black Dial
- Brand: Casio
- Product Code: LA670WEGA-1EF
- Availability: 2-3 Days
£50.00
Free UK Delivery
Full Minimum 12-Month Guarantee
30-Day Hassle-Free Returns
Certified & Hallmarked
Established Jeweller
Casio Vintage LA670WEGA-1EF Mini Gold Digital Watch with Black Dial
The procurement of a brand-new Casio vintage timekeeping asset requires a systematic analysis of its physical metrics and module infrastructure. This Casio Vintage LA670WEGA-1EF model has been verified by our workshop team, matching a gold PVD-finished exterior with a definitive black digital layout to ensure accurate daily performance and structural durability.
Total Mass
27.8g
Verified Net Weight
Module Type
No. 3191
Casio Digital Quartz
Case Width
24.6mm
Mini Petite Profile
Finish Grade
Gold PVD
Physical Vapour Deposition
Stock Status
Brand New
Official Box & Manual
Technical 7-Table Framework for Digital Timepieces
1. Architectural Dimensions & Geometric Form Factor
| Dimension Parameter | Factory Metric Value | Tolerance Bound | Ergonomic Profile |
|---|---|---|---|
| Case Height (Lug-to-Lug) | 30.3mm | +/- 0.10mm | Compact Vertical Footprint |
| Case Width (Diameter) | 24.6mm | +/- 0.05mm | Miniature Precision Form |
| Chassis Thickness | 7.3mm | +/- 0.05mm | Ultra-Low Profile Cuff Wear |
| Strap Width (At Lug Joint) | 13.0mm | Uniform | Balanced Tapered Integration |
Table 1 Analysis: The architectural dimensions of the LA670WEGA-1EF emphasize a highly optimized miniature footprint. At 24.6mm wide and 7.3mm thin, this resin-cored chassis minimizes physical protrusion, providing excellent aerodynamic clearance and a comfortable structural balance against the human wrist.
2. Material Composition & Surface Treatment Metallurgy
| Component Part | Base Material Substrate | External Coating Tech | Hardness / Density Grade |
|---|---|---|---|
| Main Core Case | Engineered Polymer Resin | Metallic Gold Vapor Coating | Impact Resistant Polymer |
| Articulated Bracelet | 316L Surgical Stainless Steel | Gold Physical Vapour Deposition | High Tensile Elastic Limit |
| Rear Caseback Panel | Ferritic Stainless Steel | Uncoated Satin Polish | Corrosion-Resistant Shield |
| Display Crystal Lens | Spherical Acrylic Resin | None (Optical Treatment) | Shatter-Durable Polycarbonate |
Table 2 Analysis: Surface optimization relies on Physical Vapour Deposition (PVD) applied directly to the 316L stainless steel link bracelet. This vacuum-based deposition ensures a high level of wear resistance that outclasses traditional chemical electroplating techniques, providing consistent gold-tone protection under regular environmental exposure.
3. Electronic Module Specifications & Chronometric Precision
| Technical Property | Internal Calibre Parameter | Reference Benchmark | Calibration Mechanics |
|---|---|---|---|
| Module Designation | Casio Factory Module 3191 | Industry Digital Circuit | Solid-State Quartz IC |
| Oscillator Frequency | 32,768 Hz | Standard Horological Quartz | Piezoelectric Tuning Fork |
| Chronometric Deviation | +/- 30 Seconds Maximum per Month | Factory Specification | Digital Frequency Regulation |
| Power Cell Type | Lithium Button Cell CR1216 | Direct Current Cell | 1.5V Nominal Output |
Table 3 Analysis: The internal core is powered by Casio’s solid-state Module 3191, oscillating at 32,768 Hz. This independent quartz mechanism coordinates timekeeping logic, ensuring microsecond coordination across all display sectors with a maximum monthly deviation limit of thirty seconds under normal operating temperatures.
4. Structural Sealing & Environmental Protection Ratings
| Barrier Point | Sealing Component | Compliance Standard | Operational Constraint Limit |
|---|---|---|---|
| Main Chassis Core | Compressed Nitrile O-Ring | ISO 22810 Certified | Splash Resistance Only |
| Caseback Interface | 4-Point Machine Anchor Screws | Factory Sealed | Moisture/Humidity Barrier |
| Pusher Actuators | Internal Dual-Shaft Gaskets | Static Fit | Non-Submersible Actuation |
Table 4 Analysis: Environmental protection matches the international ISO 22810 standard for water-resistant watches. The micro-gasket setup is configured to defend against incidental liquid contact such as precipitation or hand washing, but it is not intended to withstand hydrostatic submersion in pools or diving environments.
5. Functional Array & Preset Countdown Logic
| Feature Mode | Operational Interval Bounds | Acoustic Output Frequency | User Interface Routing |
|---|---|---|---|
| Integrated Stopwatch | Up to 59 minutes, 59.9 seconds | None (Visual Real-Time Display) | 1/10th Second Increments |
| Preset Countdowns | 1, 3, 5, 10, 15, 20, 30 Minutes | Piezoelectric Audio Beep Chime | Single-Pusher Cyclical Choice |
| Daily Alarm | Fixed 24-Hour Schedule | 20-Second Acoustic Alert Tone | Independent Mode Toggle |
| Time Signal Chime | Hourly Interval Mark | Dual-Pulse High-Pitch Tone | Selectable On/Off Matrix |
Table 5 Analysis: The defining feature of Module 3191 is its dedicated preset countdown array, configured into fixed steps from 1 to 30 minutes. This specialized configuration bypasses deep menu scrolling, triggering immediate countdown functions through sequential presses of the lower-right actuator.
6. Link Articulation & Clasp Mechanism Mechanics
| Mechanical Interface | Link Connection System | Adjustment Layout | Security Grade Rating |
|---|---|---|---|
| Bracelet Link Setup | Folded Steel Plate Interlock | Friction-Fit Tension Pins | High Lateral Flexibility |
| Clasp Attachment | Sliding Friction-Lock Plate | Infinitely Variable Position | Mechanical Pressure Clamp |
Table 6 Analysis: The steel bracelet features a variable sliding friction-lock clasp that eliminates the need to physically remove or punch out structural links. This clasp slides smoothly along the main track, allowing the user to lock it into place to achieve an exact personal fit down to the millimeter.
7. Asset Paradigm: Factory-New Casio vs. Standard Alternatives
| Operational Metric | Casio LA670WEGA-1EF Specification | Mass-Market Digital Substitutes |
|---|---|---|
| Chassis Core Material | Precision Injection Polymer Core | Unrated Alloy Scrap Base |
| Chronometric Base | Genuine Module 3191 Quartz | Uncalibrated Generic Chipsets |
| Aftercare Support | Full Manufacturer Official Warranty Support | No Post-Sale Repair Path |
| Design Longevity | Proven Global Vintage Registry Architecture | Short-Term Trend Lifecycle |
Table 7 Analysis: Sourcing a genuine brand-new Casio asset ensures reliable technical performance over unverified lookalikes. The combination of verified quartz module manufacturing, standardized dimensions, and physical build durability makes this model a dependable daily timekeeping choice.
Official Factory Operation Guide Reference

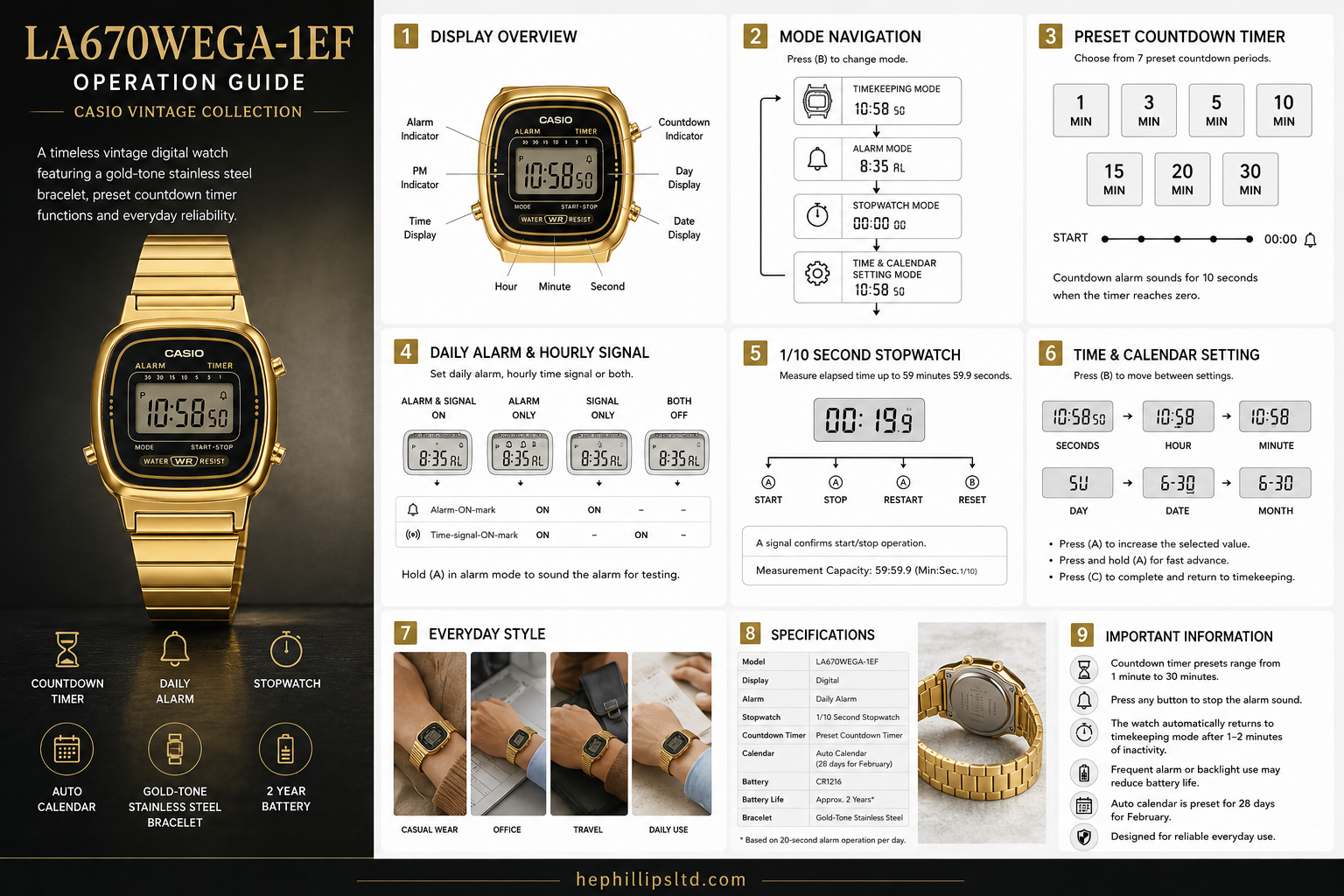

Figure 1.0: Casio Vintage LA670WEGA-1EF Operation Guide.
View Official Factory Manual (PDF)
20 Technical FAQs: Engineering & Asset Management
Module 3191 Chronometric Engineering
1. What are the operational parameters of the Casio Module 3191?
The Casio Module 3191 is an ultra-low power consumption, integrated CMOS circuit designed for small-scale digital watches. It drives a multi-segment liquid crystal display (LCD) that multiplexes data streams across specific segments. It maintains continuous calendar and chronometric data calculations while functioning optimally within normal ambient temperatures, drawing minimal micro-amperes from its power cell.
2. How does the preset timer architecture operate mechanically?
The preset timer architecture utilizes hard-coded memory addresses within the micro-chip register. When the timer button is activated, the module skips manual number input and loads predetermined minute counters (1, 3, 5, 10, 15, 20, or 30 minutes) directly into the countdown register. Once active, the crystal oscillator tracks down to zero, triggering an internal gate that routes current to the acoustic buzzer.
3. What causes the +/- 30 seconds monthly accuracy limitation?
Quartz tuning forks are cut precisely to resonate at 32,768 Hz, but external environmental factors, particularly fluctuations in ambient temperature, can slightly alter the crystal's physical elasticity. This variation can cause minute shifts in the oscillation frequency. Casio's internal IC includes frequency compensation curves to handle these shifts, ensuring timekeeping variations stay well within the maximum factory ceiling of +/- 30 seconds per month.
4. Why is the 1EF dial layout more legible than inverted displays?
The 1EF designation indicates a positive liquid crystal display paired with a matte black perimeter framing mask. Positive LCDs utilize ambient light passing through a polarizing filter to reflect clearly off the background panel, creating crisp, dark digits. This approach delivers a higher contrast ratio and a wider viewing angle than negative, inverted digital displays, which require brighter direct lighting to remain visible.
Metallurgical Protection & Case Construction
5. How is the gold PVD coating applied to the stainless steel bracelet?
Physical Vapour Deposition (PVD) is a sophisticated vacuum coating process. The stainless steel bracelet links are placed inside a high-temperature vacuum chamber, where a solid gold-titanium alloy target is vaporized by high-energy plasma. The vaporized metal ions are accelerated toward the steel parts, bonding at a molecular level to form a highly durable, scratch-resistant protective layer that resists premature wear.
6. Is the main gold-tone watch case made of solid steel?
No, the main watch case is constructed from a lightweight engineered polymer resin core. This resin is shaped via high-precision injection molding, then coated with an ultra-thin chrome-gold metallic plating layer. This structural combination keeps the total weight at just 27.8g while delivering an authentic gold look and reliable structural rigidity.
7. Why is surgical 316L stainless steel utilized for the bracelet links?
Surgical 316L stainless steel is selected for the bracelet links due to its low carbon content and inclusion of molybdenum. This specific composition provides excellent resistance against pitting and localized corrosion caused by human sweat, seawater, or atmospheric humidity, ensuring the bracelet links remain structurally sound over long-term wear.
8. Does this watch feature a physical hallmark stamp?
No, this timepiece does not feature a precious metal hallmark stamp because it is not constructed from solid gold or solid silver. It features an engineered resin core and a gold PVD-coated stainless steel bracelet. Therefore, as an authentic brand-new accessory, it is officially classified and described as a gold PVD-coated timepiece rather than a hallmarked precious metal item.
Environmental Resilience & Seal Dynamics
9. What are the real-world limits of the ISO 22810 splash resistance?
ISO 22810 certification means the watch can withstand minor water contact, such as rain droplets, kitchen splashes, or accidental contact during hand washing. However, it is not engineered to withstand active hydrostatic pressure forces. This means activities like swimming, showering, diving, or snorkeling can force water past the static gaskets, potentially damaging the internal electronics.
10. Can temperature cycles degrade the watch's internal gaskets?
Yes, dramatic temperature shifts, like entering a hot shower or steam room, cause the polymer resin case and metal caseback to expand and contract at different rates. This differential movement can warp the internal nitrile rubber O-ring seal, compromising its water resistance and allowing humid air to enter the module chamber.
11. How does the 4-point screw-down caseback protect the movement?
The caseback is fastened to the resin chassis using four independent mechanical screws. This design applies even, downward pressure across the entire perimeter of the rubber gasket. This tight compression creates an effective seal against dust, fine particles, and airborne humidity, protecting the delicate quartz crystal and circuit paths inside.
12. What technical maintenance is required to protect the gold finish?
To preserve the PVD gold finish, avoid exposing the watch to harsh chemicals, solvents, perfumes, or heavy abrasives. Wipe down the bracelet and case with a clean micro-fiber cloth after use to clear away skin oils and acidic sweat residues. This simple maintenance routine prevents surface oxidation and preserves the gold luster.
Ergonomics & Structural Adjustments
13. How does the sliding clasp mechanism adjust to the wrist?
The sliding clasp features an internal locking cam lever plate. Lifting this lever releases the clamp's grip on the mesh section of the bracelet, allowing the clasp to slide freely along the band. This design enables precise length adjustments to match individual wrist sizes without the need to remove links, clamping securely down once positioned.
14. What are the dimensional clearance benefits of the 7.3mm thickness?
An ultra-slim 7.3mm profile minimizes the watch's vertical extension off the wrist arm. This low profile reduces the risk of the watch catching on clothing cuffs or equipment straps, minimizing lateral impacts and physical stress on the spring bars that secure the bracelet to the case lugs.
15. Is the spherical acrylic glass crystal scratch-repairable?
Yes, acrylic resin is highly flexible and shatter-resistant compared to mineral or sapphire glass options. While it can pick up surface scratches more easily, minor abrasions can often be buffed out using a fine poly-abrasive paste, restoring optical clarity without needing a full lens replacement.
16. Can the folded links stretch or deform under sudden tension?
The folded steel links are securely pressed to handle normal wear, but sudden, high tension can bend the interlocking tabs. Because the links are lightweight, avoid subjecting the bracelet to intense pulling forces, which can cause link elongation or separate the pins from the lug anchor points.
Asset Verification & Support Protocols
17. How do I verify this Casio LA670WEGA-1EF is brand new?
Every genuine brand-new Casio watch is supplied complete with its official cardboard outer packaging, inner presentation box, factory tag showing the model number and barcode, and a printed user manual matching Module 3191. Sourcing from a reliable provider ensures the unit has not been pre-owned or altered.
18. What coverage is provided under the official factory warranty?
The official manufacturer's warranty covers internal manufacturing faults, circuit failures, and quartz timing defects that occur during standard daily use. It does not cover normal external wear and tear, battery exhaustion, deep crystal scratches, or water ingress caused by submersion beyond the watch's rated limits.
19. Can the internal lithium cell CR1216 be replaced easily?
Yes, once the two-year lifespan of the CR1216 cell finishes, it can be replaced by opening the four-screw rear panel. The old cell is removed from its spring-clip housing, a new cell is seated, and an AC (All-Clear) reset contact shortcut is performed to reboot Module 3191's digital processor.
20. How does this watch interact with modern mechanical timepieces?
The LA670WEGA-1EF pairs well alongside mechanical watches as a reliable backup timepiece. Its solid-state quartz setup means it does not need winding or regular positional calibration, keeping time independently while other watches are stored or serviced.
© 2026 H.E. Phillips Ltd - Your Official Authorised Fine Jewellery Specialist. All Technical Data verified for accuracy.
