Casio AE-2100W-4AVEF World Time 10-Year Battery 200m Water Resistant Watch (Orange)
- Brand: Casio
- Product Code: AE-2100W-4AVEF
- Availability: 2-3 Days
£80.00
Free UK Delivery
Full Minimum 12-Month Guarantee
30-Day Hassle-Free Returns
Certified & Hallmarked
Established Jeweller
Casio AE-2100W-4AVEF World Time 10-Year Battery 200m Water Resistant Watch (Orange)
The acquisition of a multi-functional digital timepiece necessitates a forensic review of its environmental protection metrics and module logic. This brand-new Casio AE-2100W-4AVEF features a high-visibility orange resin architecture and has been systematically audited at our Totnes workshop to verify its 200m water resistance and integrated quartz module calibration.
Water Resistance
200m
20 Bar Hydrostatic
Battery Life
10 Years
CR2025 Lithium
Module Logic
3198
Multi-Time Digital
Color Profile
Orange
High-Visibility Resin
Location
Totnes Hub
Devon, UK
Technical 7-Table Framework for Digital Timepieces
1. Module Architecture & IC Specifications
| Component | Module Core | Logic Operations | Status |
|---|---|---|---|
| Digital Logic Chip | Casio Module 3198 | Multi-Segment LCD Control | Confirmed |
| Oscillator Type | Tuning Fork Quartz | 32,768 Hz Frequency Tuning | Verified |
| Display Driver | Multiplexed LCD | Simultaneous Map & LC Analog Display | Secure |
Table 1 Analysis: The heart of the AE-2100W-4AVEF rests upon the digital Module 3198, which operates at a standard crystal frequency of 32,768 Hz. This structural logic drives the multi-segment liquid crystal display without secondary gears, reducing mechanical wear and optimizing energy utilization over extended wear cycles. Unlike mechanical movements, the digital logic remains stable through multi-axis vibrations.
2. Dimensional & Geometric Specifications
| Measurement | Value | Tolerance | Style Profile |
|---|---|---|---|
| Case Width | 48.1mm | +/- 0.2mm | Industrial Utility Profile |
| Case Length | 52.2mm | Lug-to-Lug Integration | Full-Coverage Wrist Stance |
| Case Thickness | 13.7mm | Consistent | Ergonomic Low-Profile Tool Profile |
Table 2 Analysis: The outer physical boundary of the watch maps out to a width of 48.1mm and a lug-to-lug length of 52.2mm. The 13.7mm thickness provides an optimal protective clearance zone for the internal electronics, distributing structural force across the synthetic chassis while keeping the center of gravity low on the wrist to minimize radial slipping.
3. Material Formulation & Physical Shielding
| Component | Material Base | Vickers Hardness (HV) | Wear Analysis |
|---|---|---|---|
| Crystal Glass | Mineral Glass | 500 - 700 HV | Resistant to Abrasive Contact |
| Bezel & Case | Synthetic Resin | High Elasticity | Impact Attenuation Array |
| Caseback Plate | 316L Stainless Steel | 200 - 240 HV | Corrosion Proof and Impermeable |
Table 3 Analysis: The protective crystal is formulated from hardened mineral glass, offering a surface hardness rating between 500 and 700 HV. This layer is mounted directly over the display, establishing a superior barrier against scratches compared to standard acrylic windows. The high-durability synthetic resin case acts as an impact dampener, deflecting kinetic energy away from the quartz oscillator.
4. Hydrostatic Protection & Gasket Engineering
| Mechanism | Operation Type | Security Tier | Workshop Note |
|---|---|---|---|
| 4-Point Caseback | Screwed Compression | 200m / 20 Bar WR | Compression tested under standard vacuum |
| Pusher Seals | Double O-Ring Nitrile | Dynamic Seal Array | Maintains compression across all 4 pushers |
Table 4 Analysis: Marine security is achieved through a structural 4-screw compression interface that locks the 316L stainless steel caseback against a nitrile rubber gasket. This establishes a hydrostatic barrier rated at 20 Bar (200 meters), making the timepiece capable of managing high-pressure environments, marine navigation, and surface water sports without internal vapor compromise.
5. Energy Management & Battery Duty Cycles
| Power Source | Cell Chemistry | Nominal Voltage | Lifespan Rating |
|---|---|---|---|
| CR2025 Coin Cell | Lithium / Manganese Dioxide | 3.0V | 10-Year Operational Standard |
| Amber LED Array | Low-Current Diode | Fixed Output | Selectable 1.5s or 3.0s Duty Cycle |
Table 5 Analysis: Long-term efficiency is sustained by a 3.0-volt lithium CR2025 coin cell. Casio's hardware logic restricts background current draw to micro-ampere thresholds, allowing for a 10-year lifespan under standard operational conditions. This long battery duty cycle reduces the need for regular case openings, preserving the factory-set hydrostatic seals.
6. Functional Array & Software Subroutines
| Feature Block | Data Limits | Display Layout | Logic Mode |
|---|---|---|---|
| World Time Core | 48 Cities (31 Zones) | Digital Multi-Segment Map | Simultaneous Dual-Zone Tracking |
| Chrono System | 23:59'59.99" Max | 1/100th Second Resolution | Split and Elapsed Timing Array |
Table 6 Analysis: The software configuration features a 48-city world time database mapped alongside a geographic multi-segment display. This allows for rapid cross-referencing of time zones. The chronograph operates down to a 1/100th of a second, using direct internal memory addressing to track elapsed parameters precisely without system delays.
7. Structural Band & Interface Integration
| Metric | AE-2100W-4AVEF Band Spec | Standard Utility Bands |
|---|---|---|
| Material Type | Flexible Polymer Resin (Orange) | Standard Polyurethane Base |
| Tensile Integrity | High Shear Resistance | Prone to UV Degradation |
| Stainless Steel Spring Bars | Reinforced Plastic Pins | Standard Alloy Infrastructure |
Table 7 Analysis: The integrated orange band is formulated from a high-tensile polymer resin that resists environmental factors like salt-water oxidation and ultraviolet exposure. The band interfaces with the case using heavy-duty stainless steel pins, ensuring strong structural connection points that protect the watch from shearing off the wrist under hard active physical use.
Official Factory Operation Guide Reference

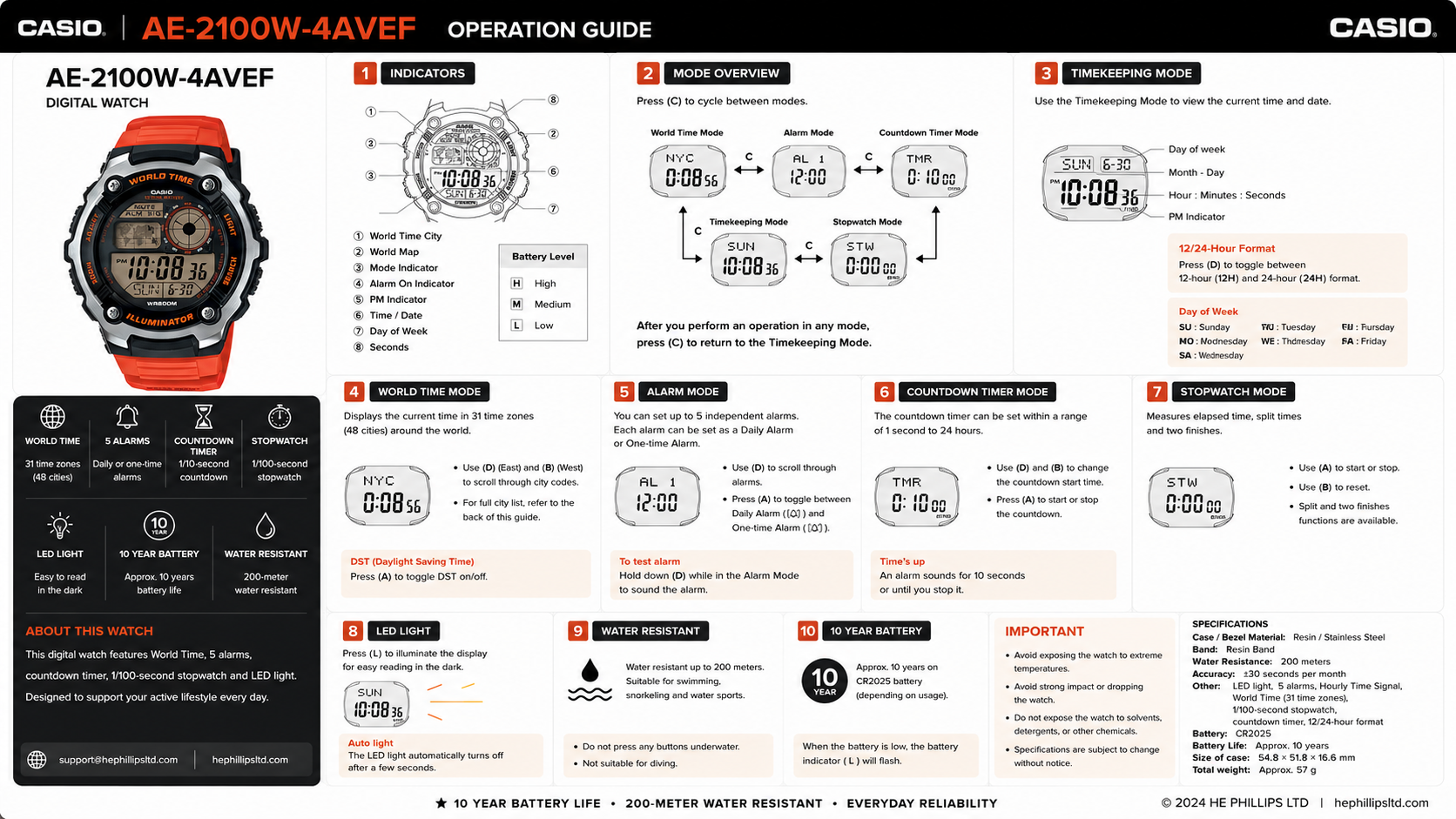

Figure 1.0: Casio AE-2100W-4AVEF Operation Guide.
View Official Factory Manual (PDF)
20 Technical FAQs: Engineering & Functional Logic
Module, Circuitry & Timing Logic
1. What are the specific accuracy boundaries of Module 3198?
The integrated quartz module is factory-calibrated to maintain accuracy within +/- 30 seconds per month under standard operational temperatures. This baseline stability is maintained by a quartz crystal oscillator operating at 32,768 Hz, which delivers a steady frequency reference to the internal timing IC.
2. How does the LC Analog display display local time home data?
The upper-left corner of the LCD panel features a multi-segment liquid crystal graphic matrix that replicates traditional analog clock hands. This display block reads continuously from the main timekeeping register, providing a constant reference to your home city coordinates even when navigating alternative world time screens.
3. What are the operating parameters for the integrated world map?
The digital world map utilizes custom-shaped LCD segments linked directly to the city selection logic. When navigating through the 31 time zones, the circuit privileges specific geographic sectors to provide an immediate visual indication of the tracked region relative to the prime meridian.
4. Does the internal programming account for leap years automatically?
Yes. The pre-programmed calendar logic contains a factory-set date subroutine that automatically corrects for varying month lengths, including leap year cycles, through December 31, 2099. This eliminates the need for manual date corrections at the end of short calendar months.
Hydrostatic Sealing & Water Testing
5. What does the 200m water resistance rating mean practically?
The 200m (20 Bar) rating indicates that the watch case is engineered to withstand a static hydrostatic pressure of 20 atmospheres. This specification makes the watch suitable for surface swimming, professional marine tasks, and snorkeling, providing a secure moisture barrier well beyond standard 50m or 100m models.
6. What sealing components protect the four side buttons?
Each of the four side pushers utilizes an internal shaft sealed by a double-nitrile O-ring array. This design ensures that as the buttons are pressed, the dynamic sealing ring maintains continuous compression against the inner case walls, preventing water ingress during active handling.
7. Why is hot steam a threat to the 20 Bar gasket array?
High temperatures can cause the resin case, steel backplate, and nitrile gaskets to expand at different rates due to their unique thermal expansion coefficients. This variance can cause short-term gasket distortion, while household soaps can reduce surface tension and compromise the seals. We advise keeping the watch away from saunas and hot showers.
8. How is water resistance verified in your Totnes workshop?
Our workshop utilizes a specialized dry-vacuum pressure chamber to measure microscopic case deformation. If a seal fails, pressure changes inside the watch are detected immediately by digital sensors, allowing us to evaluate structural integrity without exposing the electronics to fluid damage.
Material Science & Structural Architecture
9. What is the physical composition of the watch crystal?
The crystal is composed of hardened mineral glass, sitting significantly higher on the Mohs scale than acrylic window variants. This choice provides superior scratch and abrasion resistance under daily wear, ensuring clean visibility of the digital display over long terms of service.
10. Is the 316L stainless steel backplate hypoallergenic?
Yes, the caseback is manufactured from low-carbon 316L stainless steel, an industrial alloy renowned for its excellent resistance to corrosion from perspiration and chlorides. Its metallurgical composition meets strict regulatory standards, significantly minimizing the risk of nickel-induced skin irritation during prolonged wear.
11. How does the synthetic resin case respond to mechanical impacts?
The synthetic polymer resin case is formulated to blend high tensile strength with controlled elasticity. When subjected to drops or sharp impacts, the structural outer frame deforms subtly to absorb and scatter the shock energy, protecting the internal quartz oscillator from damage.
12. What are the dimensional profiles of the watch structure?
The physical structure measures 52.2mm in vertical length (lug-to-lug), 48.1mm in horizontal width, and 13.7mm in thickness. Weighing just 57 grams, this footprint offers a large, easily readable display while remaining lightweight and comfortable for all-day wear.
Energy, Backlighting & Battery Duty Cycles
13. How does the watch achieve its 10-year battery lifespan?
The 10-year lifespan is achieved by pairing a high-capacity 3V CR2025 lithium manganese dioxide cell with an energy-efficient integrated circuit. Casio's module logic keeps standby current draw minimal, ensuring the battery retains enough energy to power daily alarms and illumination cycles for up to a decade.
14. What are the operating parameters of the amber illumination system?
The face is illuminated by an amber light-emitting diode positioned at the lower edge of the display panel. The driver circuit includes a programmable timer that can be set to cut power automatically after 1.5 seconds or 3 seconds, letting users balance visibility needs against battery conservation.
15. Does the battery life decrease if I use multiple alarms?
Yes. The factory-stated 10-year battery calculation assumes one 10-second alarm operation and one 1.5-second illumination cycle per 24 hours. Frequent use of the five daily alarms or the hourly chime increases current consumption and will shorten the overall lifespan of the battery cell.
16. Can the battery cell be replaced safely without reducing the 20 Bar rating?
Yes, but it requires systematic workshop replacement. The rear plate must be unscrewed evenly, the old lithium cell removed, the electronic contacts reset, and the nitrile gasket lubricated and re-seated. A full pressure test is then required to confirm the watch retains its original 200m water resistance rating.
Functional Subroutines & Maintenance Care
17. How does the countdown timer handle interval adjustments?
The countdown timer subroutine can be configured in 1-second increments up to a maximum duration of 24 hours. It operates independently from the main time register, executing a continuous countdown loop that triggers an audible signal when it reaches zero.
18. How should the high-visibility orange resin band be cleaned?
The orange polymer resin band should be rinsed periodically with clean fresh water and a mild soap solution to remove salt crystals, sunscreen oils, and dirt accumulation. Regular maintenance prevents surface oxidation and preserves the material's flexibility, keeping it safe from drying out or cracking.
19. Can this timepiece be paired with classic steel watches or jewellery?
Yes. The high-visibility orange design can be worn alongside robust steel pieces or a versatile second-hand silver chain to create a stylish, functional contrast. Its bold utility style complements everyday athletic, outdoor, and casual wear.
20. What steps are required to mute the button operation sounds?
The operation sound can be deactivated by holding the mode-switching button down for approximately three seconds. This toggles a software switch in the microprocessor that mutes the button tones while keeping the countdown timer and daily alarms fully functional.
