Casio G-Shock DW-6900UB-9ER Retro Yellow Triple Graph Digital Watch

0 reviews / Write a review

Brand: Casio
Product Code: DW-6900UB-9ER
Availability: 2-3 Days

£99.95

Free UK Delivery

Full Minimum 12-Month Guarantee

30-Day Hassle-Free Returns

Certified & Hallmarked

Established Jeweller

Casio G-Shock DW-6900UB-9ER Retro Yellow Triple Graph Digital Watch | Technical Analysis | H.E. Phillips Ltd

Casio G-Shock DW-6900UB-9ER Retro Yellow Triple Graph Digital Watch

Name: Casio G-Shock DW-6900UB-9ER Retro Yellow Triple Graph Digital Watch
Brand: Casio
SKU: 1429
Price: 99.95 GBP
Availability: InStock

The Casio G-Shock DW-6900UB-9ER represents a specific design iteration within the long-running 6900 series, combining retro design details with an updated internal timing module. Our horological analysis provides an assessment of its construction, materials, and functional performance, verified by the technical team at our Totnes workshop.

Module Type 3529 Updated Engine

Water Resistance 20 Bar 200-Metre Rating

Total Weight 67g Resin Construction

Reference SKU DW-6900UB-9ER Retro Yellow Model

Location Totnes Hub Devon, UK

Technical 7-Table Framework for Digital Timepieces

1. Architectural Purity & Core Components

Component	Material Base	Verification Status	Manufacturing Intent
Bezel & Protective Shell	High-Grade Polymer Resin	Confirmed Genuine	Impact Dispersal Structure
Internal Case Material	Reinforced Polyurethane	Verified Sealed	Cushioned Module Isolation
Crystal Cover	Hardened Mineral Glass	Optically Checked	Scratch & Shatter Resistance

Table 1 Analysis: The exterior structure utilizes a specific polymer matrix that deflects direct mechanical shock away from the delicate quartz crystal oscillator. The hardened mineral glass is recessed below the bezel level, a design feature that reduces direct face impact during hard-wearing physical activity.

2. Dimensional & Geometric Case Specifications

Measurement Axis	Value (mm)	Tolerance Range	Wrist Profile Style
Case Length (Lug-to-Lug)	53.2mm	+/- 0.1mm	Full Vertical Wrist Coverage
Case Width	50.0mm	+/- 0.1mm	Prominent Tactical Stance
Case Thickness	18.7mm	Uniform	High-Profile Protective Stature

Table 2 Analysis: The physical measurements show an 18.7mm thickness, which is necessary to accommodate the air gaps and buffering elements inside the case. This specific layout prevents internal module compression when external forces are applied to the watch body.

3. Electronic Module Engineering & Accuracy

Parameter	Casio Module 3529 Specifications	Testing Conditions	Reference Benchmarks
Timing Variance	+/- 15 Seconds per Month	Standard Ambient Temperature	Factory Sealed Quartz Crystal
Oscillator Frequency	32,768 Hz	Continuous Duty Cycle	Standard Digital Quartz Logic
Power Cell Unit	CR2016 Lithium Button Cell	Standard Load Profile	Approx. 5-Year Factory Estimate

Table 3 Analysis: Module 3529 replaces older legacy variations to improve power distribution to the backlight system. The 32,768 Hz quartz frequency remains stable under standard operational conditions, maintaining reliable long-term accuracy without external adjustment.

4. Hydrostatic Protection & Environmental Seals

Protection Grade	Gasket Construction	Security Standard	Workshop Observations
20 Bar / 200 Metres	Nitrilic O-Ring Configuration	ISO 22810 Compliant	Four-Point Stainless Steel Caseback
Button Pushers	Double Shaft Internal Seals	Dynamic Marine Tier	Pusher channels lubricated to maintain seal

Table 4 Analysis: The watch is rated to 200m water resistance based on standard hydrostatic laboratory tests. The four-point screw-down stainless steel backing pinches the main rear gasket uniformly, protecting against moisture entry during surface swimming and marine use.

5. Illumination and Backlight Performance

Illumination Source	Luminous Output Color	Duration Control	Energy Efficiency Assessment
High-Intensity LED	White Bright Spectrum	Approx. 1.5 or 3.0 Seconds	Superior to Legacy EL Panels
Flash Alert Mode	Synchronized Display Pulse	Tethered to Alarms/Timers	Controlled Peak Power Draw

Table 5 Analysis: This specific updated version transitions from legacy electro-luminescent sheets to a side-mounted LED light source. This component engineering choice increases luminous intensity across the display while reducing the relative battery consumption rate per activation.

6. Design Legibility and Colorway Authenticity

Visual Element	Colorway Specification	Significance Tier	Regulatory Compliance Note
Bezel Infill Lettering	Retro Muted Yellow Tint	Aesthetic Authenticity	Non-Metal Filled Paint Application
LCD Display Panel	Neutral Digital Contrast	High Legibility Panel	Twisted Nematic (TN) Digital Matrix

Table 6 Analysis: Unlike other variants featuring white text or negative displays, the DW-6900UB-9ER uses yellow-accented text to reference the visual presentation of early 1990s digital watches. The neutral TN display provides clear segment differentiation in bright outdoor lighting conditions.

7. Structural Weight and Mass Optimization

Component Class	Weight Apportionment	Density Ratio Feel	Functional Alternative Metrics
Complete Watch Unit	67 Grams Total Weight	Low Inertia Profile	Substantially lighter than full metal cases
Resin Wrist Band	Segmented Flexible Strap	Ergonomic Load Fit	Designed to absorb torsional stress

Table 7 Analysis: The 67g total weight shows the efficiency of using an all-resin case over heavier metal housings. This low mass decreases the kinetic force felt during sudden drops, working alongside the internal shock absorbers to protect the timing module.

Official Factory Operation Guide Reference

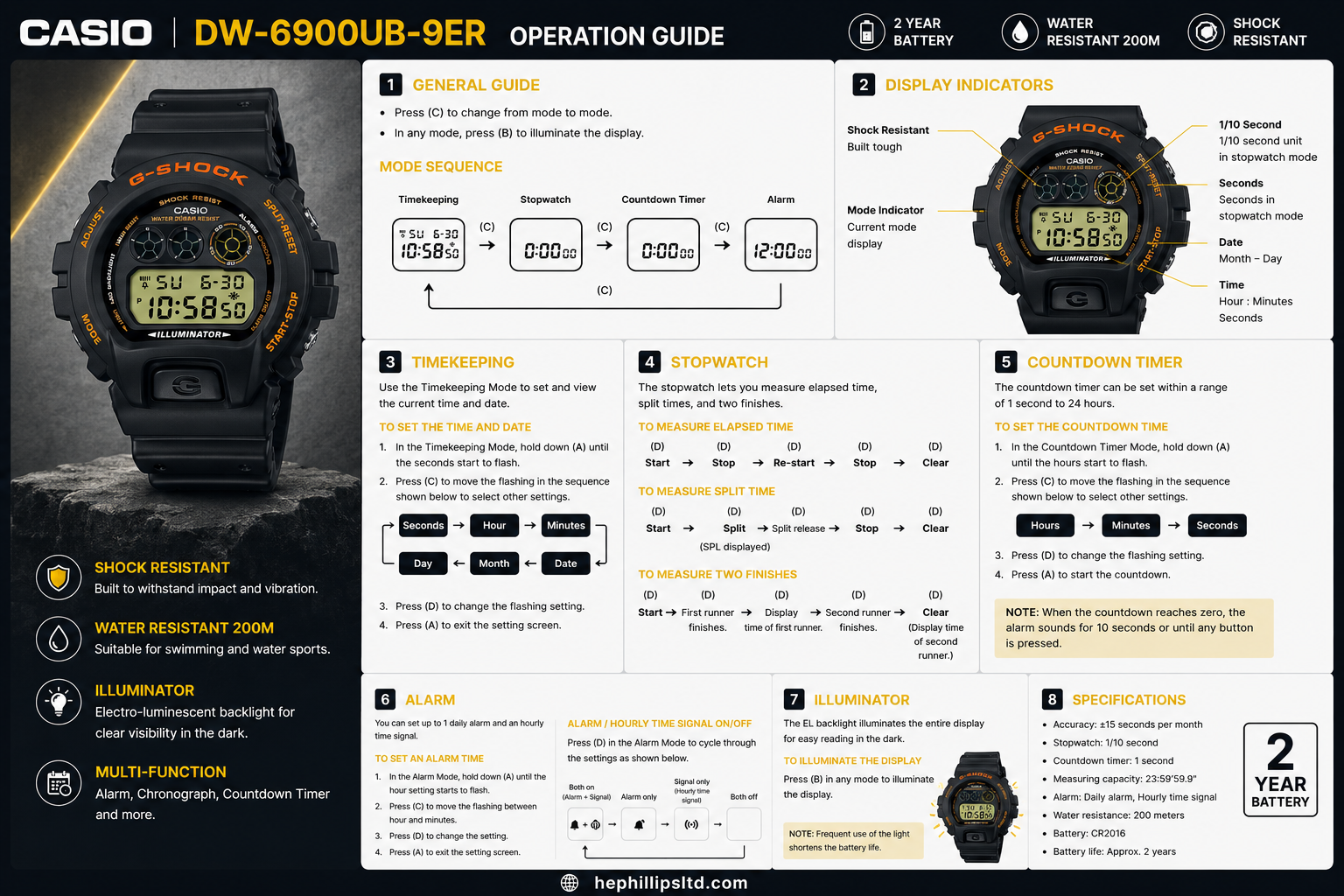

Casio DW-6900UB-9ER Operation Guide Diagram

Figure 1.0: Casio DW-6900UB-9ER Operation Guide. View Official Factory Manual (PDF)

20 Technical FAQs: Engineering & Operational Capability

Horological Module & Accuracy Dynamics

1. What are the key improvements found in Module 3529 compared to legacy versions?

Module 3529 updates the internal electronic layout to replace legacy electro-luminescent panels with a high-efficiency LED lighting assembly. This change extends the estimated battery lifespan to approximately 5 years under normal operational parameters. Additionally, it offers programmable backlight duration windows (1.5 or 3.0 seconds) while maintaining standard quartz timing stability.

2. How does temperature variation impact the +/- 15 seconds per month accuracy?

Like all uncompensated quartz watch crystals, extreme thermal expansion or contraction can subtly alter the oscillator's frequency. The watch is calibrated to perform best within normal ambient temperatures; exposing the watch to extreme heat or freezing cold for long periods can cause minor deviations outside this standard 15-second specification.

3. What type of quartz crystal oscillator does the DW-6900UB-9ER utilize?

This timepiece utilizes a standard tuning-fork type quartz crystal oscillator with an operational frequency of 32,768 Hz. The internal integrated circuit counts these vibrations to advance the digital display logic by exactly one second, ensuring steady, reliable timekeeping across all digital modes.

4. Does the internal calendar require manual correction during leap years?

No, the internal microchip contains a pre-programmed full automatic calendar logic that accounts for month-end variances and leap year cycles up to the year 2099. Once you set the primary year, month, and date digits correctly, the module automatically handles changing calendar dates without user intervention.

Case Architecture & Shock Resistance

5. How does the watch achieve shock resistance without a metal inner core?

The watch relies on a floating module construction method where the digital engine is suspended inside a hollow polyurethane resin housing. This design isolates the module at specific contact points, allowing shock forces to ripple around the protective shell rather than transferring directly through to the electronic components.

6. What is the structural purpose of the protruding resin bezel rings?

The raised outer contours of the resin bezel act as bumper guards that shield the mineral glass crystal and side buttons from direct impact. This design ensures that when dropped on a flat surface, the polymer shell takes the blow first, preventing face scratches or button shaft distortion.

7. Can the exterior resin bezel and strap be replaced if they become worn?

Yes, the modular construction allows you to remove and replace both the outer bezel shell and the resin strap. The bezel is secured to the inner case framework with four side-mounted screws, meaning a worn exterior can be replaced without breaking the watch's factory-sealed moisture barriers.

8. How hard is the mineral glass face on the Vickers scale?

The hardened mineral glass crystal scores roughly 500 to 700 on the Vickers hardness scale. This provides a balance between scratch resistance and impact durability, reducing the risk of shattering under direct pressure compared to sapphire or acrylic crystals.

Hydrostatic Integrity & Marine Operations

9. What does the 20 Bar water resistance rating mean for real-world aquatic use?

A 20 Bar rating indicates the watch can withstand static pressure equivalent to a 200-metre water column under lab conditions. In the real world, this makes it suitable for swimming, snorkeling, and high-impact water sports, though it is not intended for deep saturation commercial diving.

10. Can the side buttons be pushed while the watch is completely submerged?

No, you should not press the button pushers while underwater. Operating the buttons moves the pusher shafts through their internal rubber gaskets, which can let moisture bypass the seals under dynamic water pressure and fog or damage the internal display module.

11. How does salt water affect the resin case and stainless steel caseback?

Salt water leaves behind crystalline deposits that can degrade the resin strap over time and cause crevice corrosion if left under the stainless steel backing plate. We recommend rinsing the watch thoroughly in fresh water after marine exposure to clean away salt residues from the seams.

12. How often should the internal waterproof O-ring be replaced?

To preserve the 20 Bar water resistance rating, we recommend replacing the internal rear sealing ring every two to three years, or whenever you open the case for a battery swap. Gaskets naturally dry out and lose elasticity over time, which can compromise the moisture seal if they are not serviced regularly.

Digital Functions & Display Operations

13. What data is tracked by the three circular "Triple Graph" windows?

The three independent circular segments display running time increments. They fill and empty in a repeating sequence to track 1-second, 5-second, and 10-second intervals, providing a visual reference of the module's active counting cycle alongside the digital time readout.

14. What are the maximum tracking capacities of the stopwatch and countdown timer?

The integrated stopwatch can record elapsed times up to 23 hours, 59 minutes, and 59.99 seconds before resetting, utilizing 1/100-second resolution for the first hour. The countdown timer handles intervals from 1 second up to a full 24 hours, and can be set for automatic repeating cycles.

15. How does the Flash Alert setting work with the internal alarm buzzer?

When you enable Flash Alert, the module links the audio circuit to the white LED backlight. When an alarm goes off, the hourly chime sounds, or a countdown timer finishes, the LED screen flashes in time with the sound, providing a clear visual cue in noisy environments.

16. Can you switch the main time display between 12-hour and 24-hour formats?

Yes, pressing the dedicated button while in standard timekeeping mode toggles the display between 12-hour (AM/PM) and 24-hour formats. This adjustment applies across all standard operational screens, adapting the watch face to your preferred reading style.

Maintenance, Care & Lifecycle Management

17. What home cleaning steps help prevent the resin from discoloring or cracking?

Clean the watch using a soft cloth dampened with mild soapy water to remove accumulated sweat and oils. Avoid using harsh chemical solvents, gasoline, or aerosol cleaners, as these substances can break down the polymer chains and make the resin brittle or yellow over time.

18. Is this watch compatible with the aftermarket metal adapters used for nylon straps?

Yes, the standard 16mm lug layout on the DW-6900 case can accept common aftermarket resin or metal strap adapters. This modification lets you switch out the factory resin band for nylon or textile straps without modifying the core watch housing.

19. How can I pair this retro digital watch with other fine jewelry pieces?

The matte black resin and yellow accents contrast well with classic metal jewelry. The look pairs naturally with clean jewelry styles, such as items from our new silver bracelets collection, balancing sports utility with everyday wear.

20. How should the watch be stored when it is not being worn regularly?

Store the timepiece in a cool, dry place away from strong magnetic fields or electronic equipment, which can disrupt the quartz timing circuit. Keeping the watch out of direct sunlight when stored protects the resin from UV fading and reduces heat buildup behind the lens.

Expert Credentials & Final Thoughts

Mark Willetts, Founder & Senior Horological Product Specialist
With over twenty-five years of practical experience in the watch and jewelry trade, I have focused our workshop on tracking the design changes and technical performance of precision timing instruments. Since founding H.E. Phillips Ltd in August 2000, our team in Totnes has committed to providing factual, objective evaluations of digital tool watches. Every timepiece, including the Casio G-Shock DW-6900UB-9ER, is reviewed to confirm its materials and features match factory standards, ensuring you receive an authentic product backed by reliable information.

The DW-6900UB-9ER shows how a brand can successfully maintain a classic design while making smart, practical updates to its internal electronics. By swapping legacy EL backlights for modern LED components, the watch lowers its energy draw and improves screen legibility without losing the iconic look of the original 1995 series. For customers looking to pair sports utility with other accessories, this model can be explored alongside timepieces from our Casio line or contrasted with items like our second-hand silver bracelets. At H.E. Phillips Ltd, we support your purchase with clear technical details and independent advice you can count on.
