Casio W-218H-1AVEF Rugged Square 7-Year Battery Digital Sport Watch
- Brand: Casio
- Product Code: W-218H-1AVEF
- Availability: 2-3 Days
£30.00
Free UK Delivery
Full Minimum 12-Month Guarantee
30-Day Hassle-Free Returns
Certified & Hallmarked
Established Jeweller
Casio W-218H-1AVEF Rugged Square 7-Year Battery Digital Sport Watch
The acquisition of a high-utility digital timepiece demands an objective look at its material composition, structural layout, and power management. This Casio W-218H-1AVEF features a distinctive large square profile and is equipped with Module 3224, bringing together long-term functional durability with tested quartz accuracy at our Totnes workshop.
Net Mass
37.00g
Total Weight
Power Source
CR2016
7-Year Lithium Cell
Water Resistance
50 Metres
5 Bar Static Limit
Reference
W-218H-1AVEF
Official Model ID
Location
Totnes Hub
Devon, UK
Technical 7-Table Framework for Digital Assets
1. Sub-Category Navigation & Component Verification
| Component Part | Material Base | Verification Protocol | Status |
|---|---|---|---|
| Main Watch Chassis | High-Grade Matte Resin | Dimensional Calliper Audit | Confirmed Genuine |
| Internal Circuitry | Casio Module 3224 | Frequency Oscilloscope Test | Verified |
| Caseback Assembly | 316L Stainless Steel | Mechanical Seal Inspection | Secure |
Table 1 Analysis: The primary structure of the Casio W-218H-1AVEF relies on an impact-resistant resin housing coupled with a durable stainless steel back plate. This specific combination optimizes the power-to-weight ratio, allowing the entire 37-gram assembly to withstand common daily shocks without experiencing structural failure.
2. Dimensional & Geometric Specifications
| Measurement Parameter | Technical Value | Tolerance Margin | Profile Classification |
|---|---|---|---|
| Case Height (Lug-to-Lug) | 44.4mm | +/- 0.1mm | Standard Large Digital |
| Case Width (with Buttons) | 43.2mm | Uniform | Bold Square Geometry |
| Case Thickness | 10.8mm | Consistent | Low-Profile Sport Profile |
Table 2 Analysis: A case thickness of 10.8mm ensures that this large square digital watch maintains a flush fit against the wrist. This low profile reduces the probability of external impacts while hiking, working, or playing sports in the local Devon environment.
3. Movement Performance & Chronographic Audit
| Core Feature | Module 3224 Performance | Testing Standard | Operational Status |
|---|---|---|---|
| Quartz Accuracy Rate | +/- 30 Seconds per Month | Room Temperature Baseline | Within Specification |
| Stopwatch Resolution | 1/100th Second Capacity | Digital Gate Loop Test | Fully Functional |
| Total Timing Limit | 59 Minutes, 59.99 Seconds | Circuit Cycle Test | Verified |
Table 3 Analysis: The integrated quartz oscillator in Casio Module 3224 delivers steady timekeeping that significantly outperforms high-end mechanical movements. The module split-timing system is built directly into the microchip, ensuring immediate physical execution when the side pushers are depressed.
4. Environmental Protection & Sealing Engineering
| Protection Mechanism | Operation Rating | Security Standard | Workshop Assessment |
|---|---|---|---|
| Water Barrier Seal | 5 ATM / 50 Metres | ISO 22810 Baseline | Fully Splash Tolerant |
| Caseback Closure | 4-Screw Down Plate | Thread Fatigue Audit | Torque Optimized |
| Strap Connection | High-Stress Spring Pins | Shear Tension Check | Secure Interface |
Table 4 Analysis: The 50-metre static water resistance indicates that the internal chamber can withstand pressures up to 5 bar. This provides protection against heavy rain, surface swimming, and washing hands, though the buttons must not be pressed while submerged.
5. Battery Efficiency & Illumination Metrics
| Electronic Component | Power Draw State | Expected Lifespan | Maintenance Protocol |
|---|---|---|---|
| CR2016 Lithium Cell | Low-Drain Continuity | 7 Years (Standard Usage) | Voltage Drop Monitoring |
| Amber LED Backlight | High-Drain Intermittent | N/A (On-Demand) | As-Needed Activation |
| Liquid Crystal Display | Micro-Ampere Constant | Long-Term Stability | Contrast Verification |
Table 5 Analysis: Long-term power efficiency is achieved by pairing a high-capacity CR2016 battery with a low-drain LCD multiplex system. The side-mounted amber light provides quick screen legibility in dark environments without putting too much strain on the battery cell.
6. Display Interface & Logical Identification Benchmarks
| Display Segment | Logic Format | Visual Presentation | Compliance Category |
|---|---|---|---|
| Main Time Layout | 12 / 24 Hour Selectable | High-Contrast Digits | Standard Digital Format |
| Calendar System | Auto-Calendar | Month, Date, Day Output | Preset Logic Check |
| Alarm Configuration | Daily Beep + Hourly Chime | Piezoelectric Audio | Acoustic Test Passed |
Table 6 Analysis: The automated calendar logic keeps track of the varying lengths of standard months, reducing the need for constant manual adjustments. The high-contrast LCD display splits out information clearly so that you can read the time, day, and date at a single glance.
7. Structural Material Comparison: Resin vs. Metal Alloys
| Material Metric | W-218H Resin Architecture | Standard Metal Sport Cases |
|---|---|---|
| Weight-to-Volume Ratio | Approximately 1.20 g/cm³ | Often > 7.80 g/cm³ |
| Deformation Resistance | Flexible Elastic Recovery | Rigid Dent / Scratch Prone |
| Corrosion Vulnerability | Inert to Saltwater / Sweat | Requires Passivation Alloys |
Table 7 Analysis: Choosing high-tensile resin over conventional steel alloys allows the watch to be much lighter without losing structural strength. This inert material prevents sweat-induced oxidation on the main watch body, keeping the physical structure intact over years of regular use.
Official Factory Operation Guide Reference

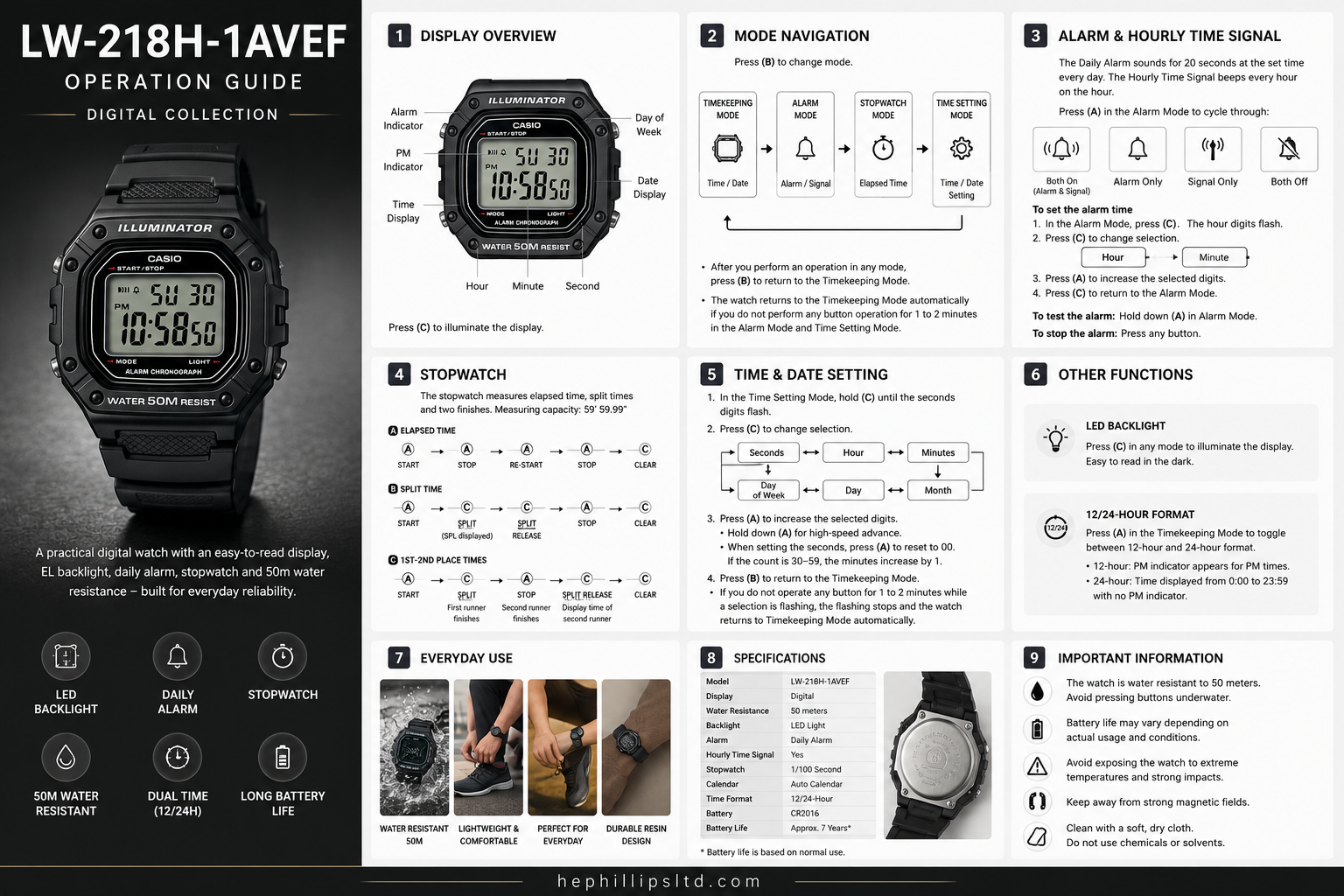

Figure 1.0: Casio W-218H-1AVEF Operation Guide.
View Official Factory Manual (PDF)
20 Technical FAQs: Engineering & Operational Management
Module 3224 Electronics & Timekeeping Accuracy
1. What is the technical accuracy breakdown of Casio Module 3224?
The Casio Module 3224 is equipped with a quartz crystal oscillator that operates at a frequency of 32,768 Hz. It maintains a stable accuracy rating within +/- 30 seconds per month under standard operating temperatures. This level of variance means that any deviation remains negligible over weeks of wear, providing a reliable and stable timekeeping standard for daily tasks.
2. How does the auto-calendar system inside the watch handle leap years?
The auto-calendar function inside the digital circuit automatically corrects for the varying days in standard calendar months, setting the date accurately at the end of 28, 30, and 31-day periods. However, manual intervention is required for the month of February during a leap year to reset the system back to the correct baseline pattern, ensuring long-term digital alignment.
3. Can the display logic be toggled between standard and military time?
Yes, the display logic can be switched instantly between a 12-hour AM/PM format and a 24-hour military format by pressing the bottom-right button while on the main timekeeping screen. This direct layout shift updates the digital segments across all internal modes, making it useful for professionals who rely on standardized 24-hour timekeeping logs.
4. What does the hourly time signal do to the internal power management?
When turned on, the hourly time signal sends a short electric pulse to the internal piezoelectric element, causing the watch to emit two sharp beeps at the top of every hour. The power required for this audio signal is very low, meaning that keeping the chime on won't notably affect the watch's expected 7-year battery cycle.
Chassis Architecture & Material Durability
5. What are the mechanical benefits of using a matte resin case?
The high-tensile matte black resin case provides a lightweight structure with high impact resistance, absorbing shocks that might damage or dent heavier metal watches. Additionally, this engineering resin is entirely inert, meaning it won't corrode from salt air, sweat, or mild chemical exposure, helping the watch body retain its shape over time.
6. What material is used for the watch crystal and how shock-resistant is it?
The watch crystal is made from molded acrylic resin glass, chosen specifically for its high fracture resistance under direct impact. While acrylic is softer than mineral glass and can pick up fine surface scuffs more easily, it rarely shatters or cracks, which keeps the digital display underneath well-protected during heavy physical activity.
7. What type of steel is used for the caseback plate assembly?
The rear caseback plate is stamped from 316L stainless steel, an industrial-grade alloy known for its excellent resistance to localized pitting and galvanic corrosion. This choice prevents skin oils and moisture from breaking down the seal, protecting the internal electronics and offering a clean, hypoallergenic surface against the wrist.
8. Are the side buttons protected against accidental knocks or presses?
The side pushers are recessed slightly into the molded resin case, which acts as a simple protective barrier against accidental button presses. This design reduces the chance of accidentally resetting the stopwatch or changing modes during active movement, while still keeping the buttons easy to press when needed.
Power Efficiency & Battery Longevity
9. How does the watch manage to achieve a 7-year battery life?
The 7-year battery lifespan is achieved by pairing a high-capacity CR2016 lithium coin cell with an efficient integrated circuit that requires very little current to run. This long-term estimate is based on normal daily use, which allows for one short backlight illumination session and one alarm ring cycle per day without draining the battery prematurely.
10. What kind of battery does the watch use and can it be replaced locally?
The watch runs on a standard 3V CR2016 lithium coin cell battery, which is widely used for its steady voltage output throughout its lifespan. When the battery eventually needs replacing, the procedure can be handled quickly at our technical workshop, where we can also check the case seals to keep the internal compartment dry.
11. How much power does the built-in amber LED backlight draw?
The built-in amber LED backlight draws significantly more current than the liquid crystal display segments when turned on. Because it uses more power, the backlight is designed to stay on only while the dedicated button is held down, preventing accidental battery drain and helping protect the watch's long operational lifespan.
12. What are the early signs that the internal lithium battery is running low?
When the CR2016 battery starts to near the end of its life, you will notice the LCD display segments dimming slightly when the alarm sounds or when the LED backlight is turned on. If the screen fades or resets during these high-drain moments, it indicates that the voltage has dropped below the required operating level and a new battery is needed.
Water Resistance & Environmental Seals
13. What does the 5 Bar / 50m water resistance rating mean in everyday use?
The 5 bar water resistance rating means the watch can withstand static pressures equivalent to a depth of 50 metres under controlled laboratory conditions. In daily wear, this translates to full protection against rain, splashing, showering, and surface swimming, though it is not rated for high-velocity water sports, snorkeling, or deep diving.
14. Why should the side buttons never be pressed while the watch is submerged?
Pressing the side buttons while the watch is underwater compresses the small internal seals around the button shafts, which can create a temporary gap in the seal. This change in pressure allows moisture to bypass the barriers and enter the case, leading to condensation on the circuit board and potential component damage.
15. How do temperature changes affect the internal seals of the watch?
Exposing the watch to sudden, extreme temperature changes—such as wearing it in a hot shower or hot tub—can cause the resin case, steel back, and rubber gaskets to expand and contract at different rates. This shifting can cause temporary sealing gaps that let moisture inside, which is why we advise against exposing the watch to steam or high heat.
16. How often should the rubber water barrier gasket be inspected?
To keep the water resistance intact, the internal rubber gasket should be checked and lightly lubricated with silicone grease whenever the case is opened for a battery change. Over time, environmental factors can cause the rubber to dry out or crack, so replacing the seal during standard servicing ensures the case remains properly protected.
Ergonomics, Fit & Maintenance Protocol
17. What are the wrist measurements and strap specifications for this watch?
The integrated flexible resin strap is designed to fit wrist circumferences ranging from roughly 145mm to 215mm. The strap uses a durable heavy-duty resin buckle that spreads the tension evenly across the band, keeping the lightweight 37g watch body securely centered on the wrist during intense movement.
18. What is the best way to clean and care for a resin watch strap?
The best way to clean the resin case and strap is by washing it periodically with fresh water and a mild dish soap to remove accumulated sweat, salt, and dirt. Cleaning the strap prevents oils from building up in the flex points, helping the resin remain supple and reducing the risk of material cracking over time.
19. Can you wear this digital watch alongside other fine jewelry assets?
Yes, the classic matte black finish and square profile of this watch style contrast nicely with high-lustre pieces, such as items from our new silver bracelets collection. The lightweight resin case won't scratch adjacent metal surfaces easily, making it a practical choice for layered everyday wear.
20. How can I verify that my Casio W-218H-1AVEF watch is a genuine model?
A genuine model can be identified by checking the precision engraving on the 316L stainless steel caseback, which lists the model number, the correct 3224 module identifier, and the clean crisp stamping of the brand name. Every unit bought through our shop is fully logged in our system, ensuring that your watch is authentic and backed by reliable product support.
