Casio W-735H-1AVEF Vibration Alarm 10-Year Battery 100m Sport Watch
- Brand: Casio
- Product Code: W-735H-1AVEF
- Availability: In Stock
£45.00
Free UK Delivery
Full Minimum 12-Month Guarantee
30-Day Hassle-Free Returns
Certified & Hallmarked
Established Jeweller
Casio W-735H-1AVEF Vibration Alarm 10-Year Battery 100m Sport Watch
Evaluating high-utility sports hardware requires an objective look at structural construction and operational efficiency. The Casio W-735H-1AVEF is engineered specifically to deliver reliable haptic notifications and specialized long-term power management, separating it from standard digital timepieces through optimized physical properties.
Battery Life
10 Years
CR2032 Lithium
Alert Mode
Vibration
Silent Haptic Motor
Water Depth
100m
10 Bar ISO 22810
Module Type
3416
Casio Digital Quartz
Chassis Base
Resin
Impact Absorbing
Technical 7-Table Framework for Horological Hardware
1. Sub-Category Navigation & Hardware Variations
| Model Series | Core Operational Attribute | Technical Alignment | Product Mapping |
|---|---|---|---|
| Casio Vibration Sport | Haptic Notification Engine | Module 3416 Calibration | Active Series |
| Casio Standard Digital | Acoustic-Only Notification | Module 593/Typical Power | Standard Utility |
| Casio Heavy Duty Travel | Multi-Timezone Engine | Extended Digital Screen | World Time Series |
Table 1 Analysis: The primary categorization of the W-735H-1AVEF centers entirely on its silent alert system. While baseline digital models focus on minimalist visual layouts, this model isolates the notification delivery channel by shifting power output toward an internal mechanical vibration weight without reducing basic stopwatch parameters.
2. Build Materials & Structural Component Analysis
| Component Part | Material Base | Physical Profile | Operational Protective Benefit |
|---|---|---|---|
| Main Case Body | Molded Polymer Resin | Matte Textured | High impact absorption and chemical resistance to sweat. |
| Front Crystal | Spherical Resin Glass | Domed/Curved | Resists vertical pressure loads and prevents shattered fragments. |
| Rear Cover | 316L Stainless Steel | 4-Screw Plate | Protects internal circuitry and holds structural compression. |
| Strap Assembly | Flexible Flexible Resin | Perforated Ribbed | Maintains tensile hold and contours strictly to the wrist profile. |
Table 2 Analysis: Material distribution determines the overall structural integrity of the watch. Using a spherical resin crystal instead of standard mineral glass improves vertical impact distribution across the upper case. This helps protect the internal LCD panel during high-impact sports activities.
3. Movement Performance & Electrical Calibration
| Performance Metric | Casio Module 3416 | Generic Electronic Quartz | Standard Mechanical Movement |
|---|---|---|---|
| Timing Tolerance | +/- 30 Seconds / Month | +/- 30 Seconds / Month | +/- 20 Seconds / Day |
| Power Resource | 10-Year Lithium Cell | 2 to 3 Years Maximum | 40 to 80 Hours Reserve |
| Frequency Output | 32,768 Hz Tuning Fork | 32,768 Hz Tuning Fork | 3 to 4 Hz Balance Wheel |
| Notification Load | Dual: Piezo & Motor | Single: Piezo Only | Mechanical Striker (Rare) |
Table 3 Analysis: The Module 3416 uses a high-capacity CR2032 lithium battery to manage its power distribution. The quartz crystal oscillator is calibrated to pulse exactly 32,768 times per second. This ensures steady timekeeping performance even when the haptic motor draws more current during a notification cycle.
4. Environmental Protection & Depth Ingress Data
| Protection Layer | Testing Reference | Structural Safeguard | Real-World Environmental Limit |
|---|---|---|---|
| Moisture Resistance | 10 Bar / 100 Metres | Nitril Rubber Gasket Set | Suitable for surface swimming and snorkeling activities. |
| Illumination Source | Super Illuminator LED | Side-Mounted High-Output Diode | Ensures reading accuracy in zero ambient light. |
| 4-Point Backing Screws | Threaded Anchor Recesses | Maintains uniform pressure across the sealing ring. |
Table 4 Analysis: Environmental protection is verified using the ISO 22810 standard, which measures static pressure resistance. The 10 Bar rating ensures the watch remains sealed during common aquatic activities like swimming. However, it is not designed or rated for deep-sea scuba diving, which requires specialized ISO 6425 equipment.
5. Dimensional Metrics & Physical Mass Scales
| Dimension Metric | Physical Value (mm) | Anatomical Purpose | Haptic Transfer Efficiency |
|---|---|---|---|
| Case Width | 47.1 mm | High Legibility Visual Stance | Spreads contact over the forearm surface. |
| Case Length | 51.4 mm | Full Wrist-to-Lug Coverage | Prevents lateral rolling on the arm. |
| Case Thickness | 16.1 mm | Accommodates Internal Motor Chamber | Creates essential depth for the vibration weight. |
| Total Weight | 50.0 g | Lightweight Sport Ergonomics | Reduces structural inertia for cleaner haptic feel. |
Table 5 Analysis: The physical dimensions are designed to optimize the performance of the silent alert system. The 16.1mm case thickness is necessary to house the internal rotating weight motor. Keeping the total weight at 50 grams ensures the case transfers vibration directly to the skin instead of absorbing it through its own mass.
6. Stockist Verification & Service Standards
| Service Parameter | Independent Showroom Standard | Mass-Market Distribution Hubs |
|---|---|---|
| Warranty Support | Official UK Manufacturer Validation | Third-Party Cover Only (Varies) |
| Battery Verification | Pre-Sale Current Output Audit | Long-Term Warehouse Storage Depletion |
| Hardware Support | Direct In-Store Technical Assistance | Digital Return Forms and Postal Shipping |
Table 6 Analysis: Buying through an authorized dealer ensures your hardware receives authentic technical support. Mass-market distribution centers often leave quartz inventory in storage for long periods, which can drain the battery before the watch is sold. An authorized stockist verifies the battery power profile at the point of sale.
7. Material Science Evaluation: Densities & Tolerances
| Material Metric | Measured Structural Value | Testing Methodology | Long-Term Wear Result |
|---|---|---|---|
| Polymer Density | 1.20 g/cm³ Average | Hydrostatic Balance Audit | Stays lightweight on the wrist during exercise. |
| Steel Base Density | 8.00 g/cm³ (316L Stainless) | Mass vs Displacement Check | Resists perspiration corrosion on the skin. |
| Linear Dimension Fit | +/- 0.05 mm Tolerances | Digital Caliper Calibration | Ensures precise seal seating to block moisture. |
Table 7 Analysis: The structural performance relies on pairing a lightweight 1.20 g/cm³ resin case body with a dense 8.00 g/cm³ stainless steel backplate. This combination balances overall comfort with a rigid backplate that won't flex or bend, keeping the internal movement securely sealed.
Official Factory Operation Guide Reference

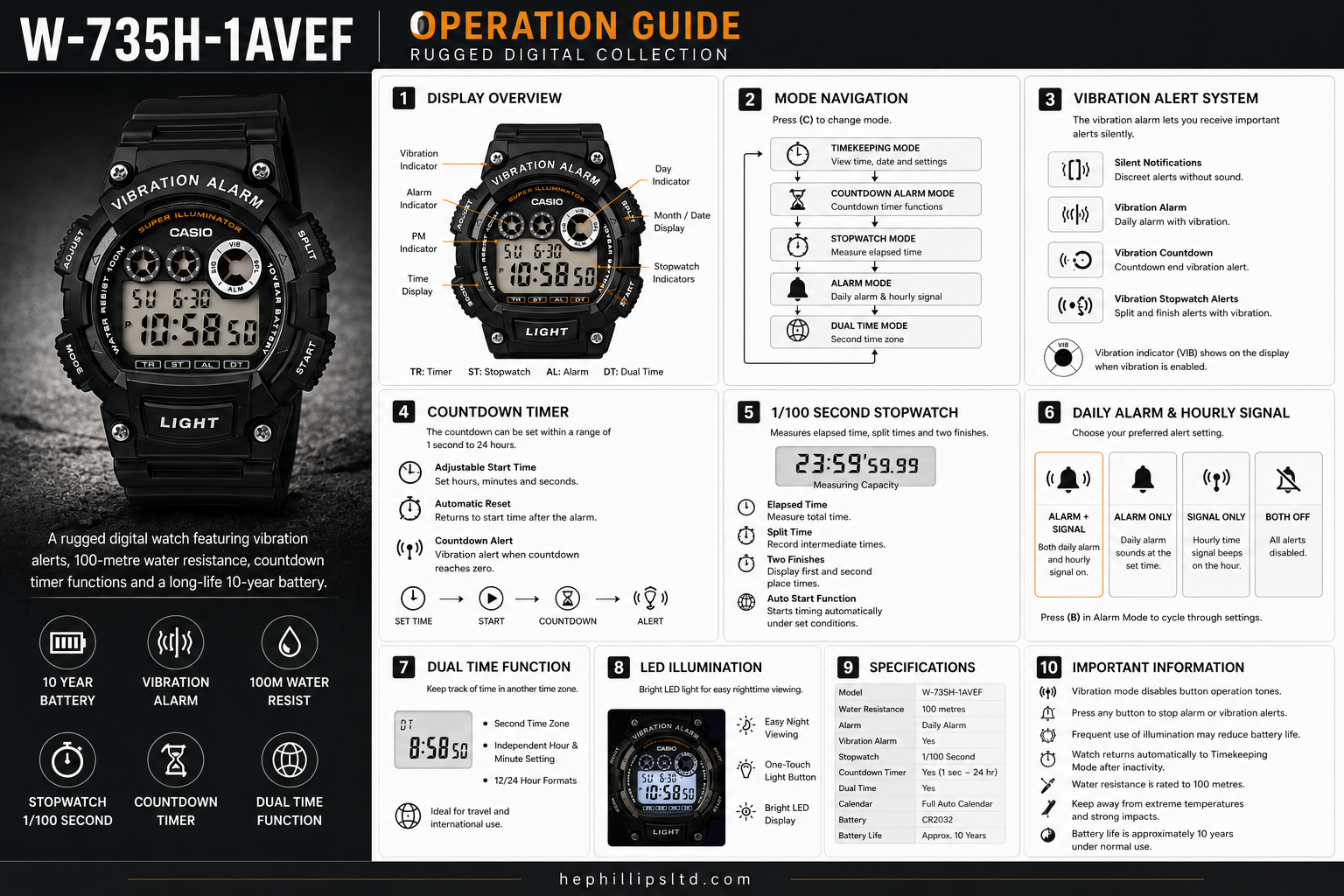

Figure 1.0: Casio W-735H-1AVEF Operation Guide.
View Official Factory Manual (PDF)
20 Technical FAQs: Engineering & Operational Management
Haptic Alert & Motor Systems
1. How does the internal vibration alarm operate mechanically?
The vibration mechanism in the Casio W-735H-1AVEF uses a microscopic, high-torque eccentric rotating mass (ERM) motor built directly into the Module 3416 housing. When an alarm time or countdown limit is reached, the circuit board directs electrical current to this motor, spinning the offset weight at high speed. This off-center movement generates rapid kinetic energy, which passes through the resin case to deliver a clear physical pulse directly to the user's wrist.
2. Can the haptic alarm and acoustic buzzer run simultaneously?
No, the system architecture of Module 3416 treats the notification outputs as an exclusive choice to manage power consumption and display logic safely. You can easily switch between the silent vibration mode and the traditional acoustic beeper by holding down the mode button in the proper configuration screen. This lets you choose the best alert type for your environment without running both systems at the same time.
3. What is the operational duration of a standard vibration alarm cycle?
When triggered by an active daily alarm time, the internal haptic motor runs for a continuous cycle of exactly 10 seconds before automatically turning off to preserve battery power. If the countdown timer triggers the alert, the vibration runs for a shorter 5-second burst. These runtimes are carefully calculated to make sure the user notices the alert without draining the cell through unnecessary mechanical use.
4. Does the vibration alert lose strength as the battery ages?
The Module 3416 uses an integrated voltage regulating circuit that provides steady power to the eccentric rotating motor as long as the battery has a safe charge. The vibration pulse will stay clean and strong throughout most of the battery's life. You will only notice a drop in motor speed when the lithium cell is nearly empty, which will also cause the digital display to fade slightly when the backlight is used.
Power Logistics & Battery Care
5. How does the watch reach a 10-year battery lifespan with a built-in motor?
The 10-year lifespan is achieved by pairing a highly efficient integrated circuit with a large CR2032 lithium coin cell, which holds roughly 225 milliamp-hours of energy. Casio calculates this battery life based on a specific daily use profile: using the vibration alarm once per day for 10 seconds and running the LED backlight once per day for 1.5 seconds. If you use the motor or light more frequently than this standard profile, the total battery life will decrease accordingly.
6. What type of battery is required for replacement?
This timepiece requires a single CR2032 3-volt lithium manganese dioxide coin battery. This specific battery type is chosen because its low internal resistance allows it to deliver quick bursts of current when the haptic motor starts up, and it retains its charge well over a decade of use. Replacement should only be done with high-quality cells from trusted manufacturers to ensure the watch meets its original run-time specifications.
7. What technical steps are involved in changing the battery safely?
Replacing the battery requires opening the four corner case screws to remove the steel backplate, followed by releasing the physical locking clip on the battery compartment. After inserting a new CR2032 cell, a technical AC (All Clear) reset must be performed by connecting a metal probe from the AC contact pad to the battery's positive surface for two seconds. Finally, the main sealing gasket must be checked, lubricated with silicone oil, and carefully realigned before closing the case to maintain water resistance.
8. Is this sports watch equipped with a solar charging panel?
No, the W-735H-1AVEF runs entirely on its replaceable long-life lithium battery and does not use a solar cell. This classic power layout ensures the watch performs reliably without needing regular exposure to sunlight, providing a dependable option for users who store their gear in dark equipment lockers or wear it under heavy sleeves.
Chassis Architecture & Environmental Seals
9. What does the 100-meter water resistance rating mean in practice?
The 100-meter (10 Bar) rating is verified under laboratory conditions using static water pressure tests according to the ISO 22810 standard. In daily use, this means the watch is fully sealed against rain, splashing water, showering, surface swimming, and shallow snorkeling. However, it is not certified for professional diving or high-impact water sports like jet skiing, where water pressure can quickly exceed the static seal limits.
10. Can the buttons be pushed while the watch is underwater?
No, you should never press the external buttons while the watch is fully submerged. The button stems use simple push-gaskets that seal out moisture when stationary, but moving the buttons underwater can allow water droplets to pass by the seal and enter the case. Always make sure the watch is completely dry before adjusting any settings or operating the stopwatch.
11. Why is the watch crystal made from spherical resin instead of mineral glass?
The domed spherical resin glass is chosen for its excellent flexibility and impact resistance. Resin handles sharp knocks and bumps during sports activities without cracking or shattering like harder mineral glass can. While resin scratches more easily than glass, its durability against breaking makes it the safer choice for active environments.
12. How do high temperatures affect the case seals and accuracy?
Exposing the watch to hot environments, such as saunas, steam rooms, or hot showers, can cause the different materials in the case to expand at different rates. This expansion can create temporary gaps in the rubber gaskets and let moisture inside. High heat can also disrupt the tuning fork oscillator in the quartz crystal, causing the timekeeping to slow down or speed up until the watch returns to normal room temperature.
Circuit Logic & Auxiliary Modes
13. What features are built into the integrated stopwatch?
The digital stopwatch in Module 3416 tracks time down to 1/100th of a second for the first hour, and then shifts to 1-second increments up to a total run time of 23 hours, 59 minutes, and 59 seconds. It includes standard timing modes for split runs, elapsed time tracking, and recording first and second place finishes, making it a reliable tool for athletic training and workout sessions.
14. How does the Dual Time mode work?
The Dual Time (DT) screen lets you track a second time zone completely independent of your primary home time settings. This feature is perfect for keeping tabs on a secondary time zone when traveling or working with international teams, and it maintains accuracy across both screens using the same internal quartz crystal.
15. What are the setup parameters for the countdown timer?
The countdown timer can be set to start anywhere from 1 second up to a full 24 hours, and can be adjusted in clear 1-second, 1-minute, or 1-hour blocks. When the timer hits zero, it triggers your choice of either a 5-second haptic pulse or an acoustic alarm, providing a quiet way to track intervals or timed tasks.
16. Does the calendar feature adjust automatically for leap years?
Yes, the internal calendar chip in Module 3416 is pre-programmed with all correct month lengths and leap year cycles up through December 31, 2099. Once you set the initial year, month, and day during configuration, the watch automatically updates the date at midnight without needing manual correction.
Ergonomics & Component Service
17. Can a standard metal bracelet be fitted to this resin case?
No, the case features a integrated lug shape designed specifically to fit the contour of Casio's proprietary molded resin straps. Standard flat metal or aftermarket leather bands will not attach securely to the case corners. Replacing the strap requires authentic Casio factory parts to keep the watch fitting correctly and securely on your wrist.
18. What is the best way to clean sweat and dirt off the case?
To keep the matte resin finish in good condition, wash the case and strap regularly with fresh water and a drop of mild liquid soap. Use a soft nylon brush to gently clear away skin oils and dirt buildup from the backplate crevices and button channels. Avoid using harsh chemical solvents, insect sprays, or gasoline near the watch, as these can dissolve or damage the surface of the resin compound.
19. How bright is the built-in Super Illuminator system?
The Super Illuminator system uses a high-power light-emitting diode placed at the edge of the liquid crystal screen. When you press the front light button, the LED brightly illuminates the entire digital layout from the side, making it easy to read all data segments clearly in pitch-black conditions.
20. Does this model feature atomic radio time synchronization?
No, the W-735H-1AVEF relies entirely on its standalone quartz crystal movement and does not connect to radio atomic clocks or Bluetooth phone signals. It maintains an independent accuracy of within 30 seconds per month, which can be adjusted manually through the settings menu if needed.
