Casio LF-20W-1AEF Twin Graph Retro World Time 10-Year Battery Watch

0 reviews / Write a review

Brand: Casio
Product Code: LF-20W-1AEF
Availability: 2-3 Days

£30.00

Free UK Delivery

Full Minimum 12-Month Guarantee

30-Day Hassle-Free Returns

Certified & Hallmarked

Established Jeweller

Casio LF-20W-1AEF Twin Graph Retro World Time 10-Year Battery Watch | Technical Analysis | H.E. Phillips Ltd

Casio LF-20W-1AEF Twin Graph Retro World Time 10-Year Battery Watch

Name: Casio LF-20W-1AEF Twin Graph Retro World Time 10-Year Battery Watch
Brand: Casio
SKU: 609
Price: 30.00 GBP
Availability: InStock

The assessment of digital horology requires verification of computational features, power delivery, and chassis composition. This Casio LF-20W-1AEF combines an LCD-based twin-graph analog emulation system with global time management, anchored in a lightweight, sustainable bio-based resin housing configured and audited at our Totnes boutique.

Power Source 10-Year CR1616 Lithium

Chassis Type Bio-Resin Eco-Based Polymer

Display Mode Twin Graph LC Analog-Digital

Reference LF-20W-1AEF Manufacturer SKU

Authorization Official Totnes Stockist Hub

Technical 7-Table Framework for Digital Timepieces

1. Sub-Category Navigation & Document Sourcing

Product Line	Core Electronic Architecture	Verification Link	Inventory Group
Casio Twin Graph	Module 3551 Segment Logic	Current Specification	Retro-Digital Digital Series
Casio Collections	Quartz Frequency Controls	Casio Inventory Hub	Brand New Standard Stocks

Table 1 Technical Analysis: The reference architecture of the LF-20W series segregates data fields via absolute uniform formatting parameters. By separating standard digital liquid crystal modules from graphic multi-segment matrices, the user obtains distinct confirmation of display capabilities without systemic clutter. This structure aligns the item with contemporary digital collections handled in our physical Devon workshop.

2. Structural & Material Composition

Component Part	Base Material Formula	Physical Stress Threshold	Engineering Performance Criteria
Chassis Case	Bio-based Synthetic Polymeric Resin	High Impact Absorption	Renewable Organic Matrix Weight Reduction
Band / Strap	Bio-based Elastomer Compound	High Flex Fatigue Resistance	Hypoallergenic Tensile Integrity
Caseback Assembly	316L Austenitic Stainless Steel	Corrosion Proof Base	Four-Point Mechanical Screw Retention Barrier
Dial Protective Lens	Spherical Resin Acrylic Glass	Shatter Resistant Facing	Low Structural Mass under Sudden Deflection

Table 2 Technical Analysis: The primary housing material shifts from petroleum-dependent hydrocarbons to a bio-based formulation derived from organic materials (such as castor bean derivatives). This modification retains identical structural deflection limits and impact dissipation rates as conventional resin while reducing initial manufacture footprint. The 316L steel back plate forms standard moisture protection boundaries.

3. Electronic Movement Calibration & Timekeeping Benchmarks

Measurement Parameter	Casio Module 3551 Specification	Standard Electronic Quartz	Comparative Horological Variance
Monthly Variance Bounds	±30 Seconds Maximum Deviation	±20 Seconds Mean Deviation	Quartz Tuning Fork Oscillator Base
Calculated Power Reserve	Approximately 120 Months Nominal	24 to 36 Months Average	High Efficiency Step-Down Voltage Gate
Frequency Output	32,768 Hz Mechanical Vibration	32,768 Hz Standard Tuning	Thermal Stabilization Dependent Environment
Operational Volt Range	1.55V to 3.0V Continuous Supply	1.55V Single-Cell Discharge	Lithium Cell Solid State Circuit Delivery

Table 3 Technical Analysis: Operational limits are bounded by the 32,768 Hz quartz tuning fork element within Module 3551. Current regulation pathways permit continuous multi-segment LC driving while extending power cell survival to approximately ten years under standardized pulse constraints. This drastically curtails required battery replacements compared to earlier 1980s retro-digital variants.

4. Functional Sub-System Analysis

Sub-System Driver	Digital Parameter Matrix	Memory Block Configuration	Mechanical Actuation Source
World Time Core	48 Cities / 31 Universal Time Zones	EEPROM Pre-Programmed Data	Side Button Sequence Matrix Interrupt
Chrono / Stopwatch	1/100th Second Chronographic Split	Dual Registers (Elapsed/Split)	Low Friction Tactile Button Contacts
Multi-Alarm Circuit	5 Distinct Diagnostic Signal Slots	Daily / Single Event Logic Gates	Piezoelectric Ceramic Resonator Assembly
Display Illumination	Built-In Light Emitting Diode	Amber Spectrum Backlight Element	Dedicated Lower-Left Sector Circuit Link

Table 4 Technical Analysis: Sub-circuits execute operations simultaneously via localized memory paths. The world time processor calculates linear time offsets relative to Coordinated Universal Time (UTC) using pre-stored offsets, rendering instantaneous updates on the liquid crystal digital screen without interfering with the internal master timekeeping core register.

5. Physical Geometry & Ergonomic Scale Values

Dimensional Index	Metric Measurements (Millimetres)	Tolerance Parameters	Anatomical Weight Distribution
Vertical Height (Lug-to-Lug)	37.8 mm Total Span	±0.1 mm Tool Margin	Low Lever Torque on Distal Radioulnar Joint
Horizontal Case Width	33.7 mm Case Diameter	±0.1 mm Tool Margin	Centered Placement Across Extensor Tendons
Profile Thickness	8.6 mm Total Height	±0.05 mm Caliper Audit	Low-Profile Interface Minimizing Outer Snags
Total Assembled Mass	23.0 Grams (Including Strap)	±0.2 Gram Scale Limit	Neutral Dynamic Drag During Manual Activity

Table 5 Technical Analysis: An 8.6 mm profile allows the watch to rest securely against the skin, maintaining a low center of gravity. Measuring the chassis with digital micrometers reveals precise geometric tolerances. The total weight of 23.0 grams prevents fatigue and minimizes physical impact risks to the bio-resin structure during sudden arm movements.

6. Stockist Status Verification vs Unverified Market Distribution

Operational Criterion	H.E. Phillips Ltd Validation Hub	Secondary Platform Resellers
Supply Line Origins	Direct Authorized Manufacturer Channels	Intermediary Gray Market Sourcing Pools
Warranty Validation	Full Official UK Coverage Activated On Sale	Third-Party Store Warranties Only
Horological Provenance	Showroom Records Active Since August 2000	Unverified Digital Store Entities
Physical Maintenance	In-House Technical Testing Workshop Access	Mail-In Hub Systems with External Routing

Table 6 Technical Analysis: Procuring timepieces from an authorized local stockist avoids common risks associated with unauthorized gray-market listings. H.E. Phillips Ltd preserves physical records and hardware inspection frameworks that protect the buyer from modified internal modules or unauthenticated components. This security matches the standards used for our verified collections, such as our second-hand silver bracelets.

7. Display Segment Geometry & Power Consumption Indexes

LC Element Category	Total Segment Count	Drive Voltage Threshold	Visual Function Mapping
Digital Core Display	7-Segment Numeric Array	Sub-1.2V Economy Gating	Primary Local Time Hour/Minute/Second Block
Twin Graph Alpha Element	Multi-Segment Analog Dial Simulation	Dynamic Direct LCD Driving	Real-Time Progress Tracking Indicator Matrix
Status Mode Flags	Dedicated Individual Symbol Indicators	Low Static Current Draw	Alarm, Hourly Chime, and DST Activity Toggles

Table 7 Technical Analysis: Liquid crystal elements use direct segment polarization fields to minimize power usage. The "Twin Graph" region emulates analog hands using radial LC blocks that polarize sequentially, reflecting standard digital designs from the late 1980s. This layout allows for rapid visual checks while drawing only micro-amperes from the power cell.

Official Factory Operation Guide Reference

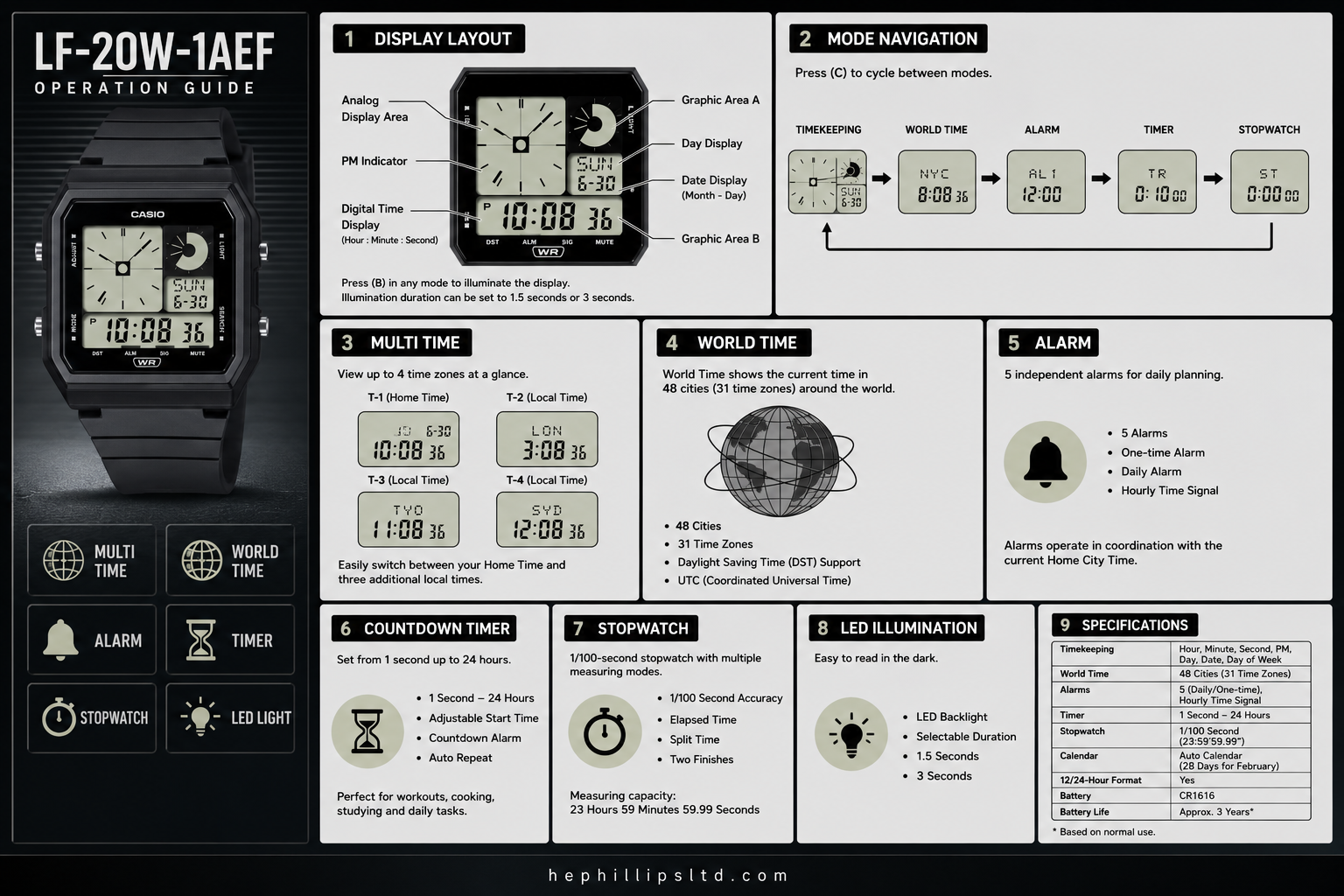

Casio LF-20W-1AEF Operation Guide Diagram

Figure 1.0: Casio LF-20W-1AEF Operation Guide. View Official Factory Manual (PDF)

20 Technical FAQs: Engineering & Operation Registry

1. Electronic Module & Power Cell Stability

1. What are the voltage properties that allow a 10-year battery lifecyle in Module 3551?

The 10-year battery lifespan of the Casio LF-20W-1AEF relies on a high-efficiency integrated circuit within Module 3551 and a CR1616 lithium cell. This configuration uses stepped-down voltage pathways that restrict static power draw to micro-amperes when the screen is static. Power cell drainage increases only during temporary operations like the amber LED backlight or acoustic alarm alerts.

2. How does temperature variation impact the accuracy of the quartz tuning fork oscillator?

The quartz crystal within Module 3551 vibrates at a standard 32,768 Hz frequency. Its accuracy remains stable within normal thermal parameters, with a rated variance threshold of ±30 seconds per month. Extreme thermal shifts can induce minor changes in the physical properties of the quartz tuning fork, but the circuit returns to nominal accuracy once it stabilizes back within normal operating conditions.

3. What happens to stored time zone offsets during a complete battery drainage event?

When current from the lithium power cell ceases completely, the module registers an absolute volatile memory reset. The hard-coded reference table containing the offsets for the 48 world cities remains intact within the non-volatile memory block, but the local home settings, alarm profiles, and specific user configurations revert to the master factory baseline until manually reprogrammed.

4. Can the module be calibrated manually if the factory quartz rate develops drift?

The module features a trimmer condenser circuit calibrated directly at the manufacturing facility to achieve optimal precision. This component is not designed for regular consumer adjustment. If the watch undergoes heavy physical shocks that shift accuracy beyond the ±30 seconds monthly specification, it requires diagnostic bench assessment at our workshop.

2. Material Science & Structural Architecture

5. What is the molecular difference between bio-based resin and standard petroleum polymers?

Bio-based resins replace conventional petroleum hydrocarbons with monomers derived from organic matter, specifically castor oil plants. At a molecular level, the resulting polymer chains maintain identical cross-linking characteristics, tensile strength, and impact resistance as traditional resins, providing standard structural integrity while reducing reliance on fossil fuels during production.

6. Why is acrylic resin glass selected for the lens instead of mineral sapphire crystals?

Acrylic spherical glass is chosen for this model to maximize impact absorption and maintain a light chassis weight. Sapphire and mineral crystals offer higher surface scratch resistance but are more susceptible to shattering under direct impact. Acrylic deflects slightly under heavy kinetic stress, acting as a shock-absorber for the digital display module beneath.

7. How does the 316L stainless steel caseback prevent galvanic corrosion from moisture exposure?

The caseback is machined from 316L austenitic stainless steel, containing chromium and molybdenum. This specific alloy mix forms a passive chromium oxide surface layer that prevents localized pitting and galvanic corrosion from sweat or ambient moisture. The plate is secured with a four-point mechanical screw system against a rubber compression ring to maintain a protective barrier.

8. Does long-term ultraviolet exposure alter the color or surface of the bio-resin casing?

The matte black bio-based resin contains UV-stabilizing compounds blended directly into the polymer matrix before molding. This integration ensures the pigment remains uniform throughout the component, preventing the surface peeling or disfigurement common in coated base metals when exposed to regular solar radiation.

3. Display Logistics & Graphic Logic

9. How does the "Twin Graph" liquid crystal interface function without mechanical hands?

The "Twin Graph" screen uses multi-segment liquid crystal fields that are polarized sequentially by the microprocessor. These blocks are arranged radially to mimic traditional watch hands. When a specific section is energized, it blocks light transmission to display a dark line, creating an analog style reference while avoiding the vulnerability of delicate moving gears.

10. What is the function of the secondary graphic window on the watch display face?

The secondary digital window displays operational mode parameters, tracking countdown timer progress, chronograph splits, and alarm triggers. This separate segment allows the user to monitor auxiliary operations while keeping the primary timekeeping numbers clearly legible on the main screen below.

11. Does the digital screen remain visible when viewed through polarized eyewear lenses?

Because liquid crystal displays rely on polarized film to form legible numbers, viewing the watch through polarized lenses at certain angles can cause the screen to darken. This occurs when the polarization plane of your eyewear aligns perpendicular to the watch's built-in filter, which is typical for standard passive LCD structures.

12. How does the built-in illumination system distribute light across the display quadrants?

Illumination is driven by an amber LED placed at the edge of the display frame. Light reflects across the clear acrylic plate behind the liquid crystal layers, illuminating the screen segments. This edge-lit system provides clear low-light visibility while maintaining minimal power consumption.

4. Environmental Protections & Testing Limits

13. What are the practical performance limits of the watch's water resistance rating?

The LF-20W-1AEF complies with standard water resistance guidelines. It is designed to withstand light rain, handwashing, and minor everyday splashes. It is not rated for swimming, snorkeling, or immersion in pools, as these activities can create dynamic pressure that exceeds the structural limits of the rubber seals.

14. Why should this watch be kept away from high-temperature environments or steam rooms?

High temperatures can cause the case materials, steel backing, and rubber gaskets to expand at different rates. This expansion can temporarily distort the seal alignment, allowing airborne water molecules or steam to breach the inner chamber and condense on the digital module, potentially causing electronic failure.

15. How does the watch body handle exposure to saltwater or coastal environments?

The bio-resin case and strap are non-reactive to sea salt, but the 316L steel backing plate can trap salt crystals along its edges. If exposed to ocean air or salt spray, the watch should be rinsed with clean fresh water and dried thoroughly with a soft cloth to prevent salt buildup from degrading the rubber gaskets over time.

16. Can the case structure handle heavy vibrational impacts during industrial work?

Because the watch utilizes solid-state circuitry without moving mechanical parts or physical gears, it handles continuous vibration effectively. The internal module is nested within a shock-absorbing resin basket that helps protect the electronic connections from breaking under sudden impacts.

5. Global Time Management & Stockist Validation

17. How does the world time function account for individual time zone differences?

Module 3551 contains a pre-programmed digital data table with offset values for 48 cities relative to Coordinated Universal Time (UTC). When you change the primary location, the processor applies the selected offset to the internal clock counter, updating the main time display while keeping your secondary time zones accurate.

18. Is there an automatic adjustment feature for local Daylight Saving Time (DST) shifts?

The watch does not receive radio or satellite signals to update automatically. Changing between standard time and daylight saving time requires the user to toggle the DST setting manually for each city zone. This manual control ensures accurate tracking across various international regions regardless of changing local regulations.

19. What consumer protections are provided by an official stockist certificate?

Purchasing through an official stockist like H.E. Phillips Ltd ensures you receive a genuine factory-assembled model with a valid manufacturer warranty. This verification protects you against aftermarket modifications, mixed internal components, or grey-market items that lack verified history and direct service support.

20. What steps are involved in updating the battery cell while maintaining factory seals?

When replacing the battery at our 19 Fore Street workshop, the steel backing is removed to access the lithium cell. The module undergoes a system reset, and the internal rubber gasket is inspected for wear. We clean the seal channel and reassemble the caseback uniformly to maintain standard protection against dust and moisture.

Expert Credentials & Final Thoughts

Mark Willetts, Founder & Senior Digital Horology Specialist
With over twenty-five years of experience in the Devon horological trade, I have focused on evaluating electronic timepieces, micro-quartz assemblies, and synthetic watch materials. Since establishing H.E. Phillips Ltd in August 2000, our workshop team has provided technical transparency across all watch categories. This Casio LF-20W-1AEF highlights the progress of modern digital design, combining long-term battery performance with clean multi-segment liquid crystal interfaces. Our setup procedures verify every module feature to ensure consistent performance for local and international users alike.

Evaluating digital watches requires looking closely at power efficiency, material limits, and construction quality. The use of bio-based resins represents a practical advancement in durable, lighter design without sacrificing everyday case strength. At H.E. Phillips Ltd, we provide detailed technical insights so you can select timepieces backed by verified specifications and dedicated service. Whether visiting us at our 19 Fore Street showroom for an in-person look or reviewing our technical files, our team supports your investment with historical trade experience and continuous aftercare support.
